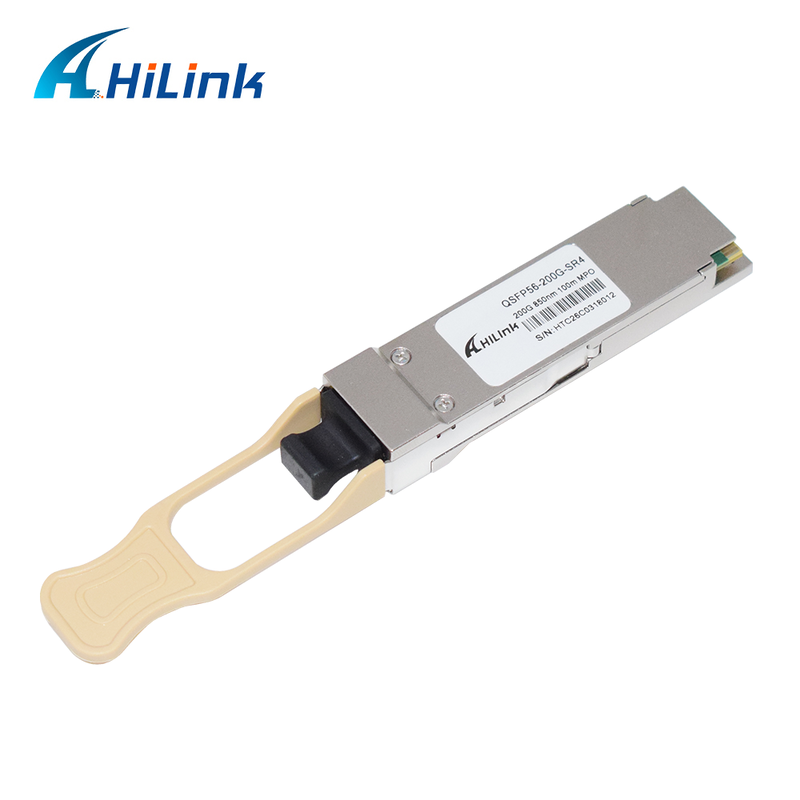

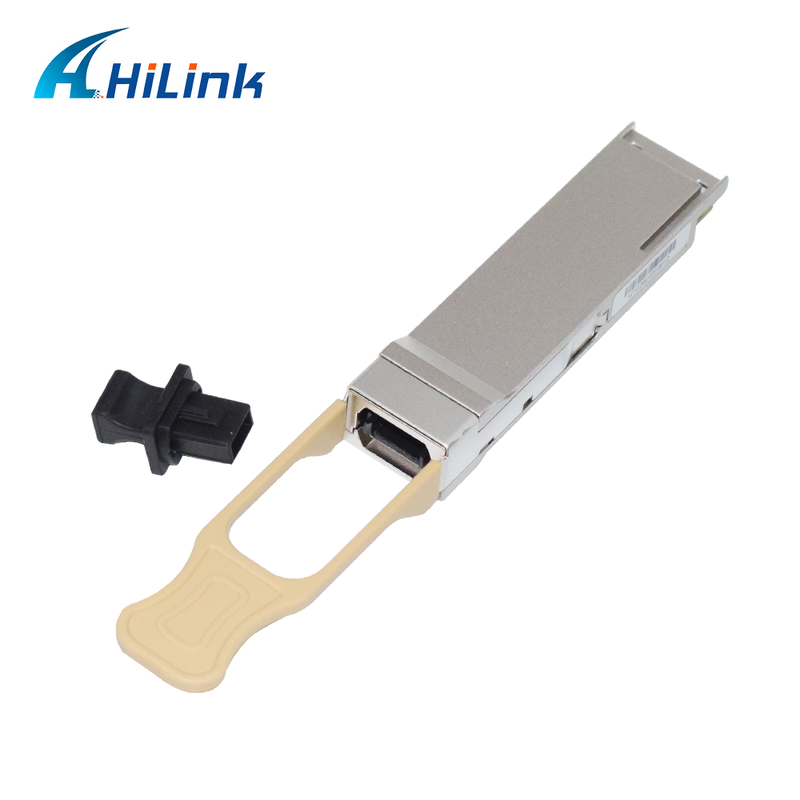

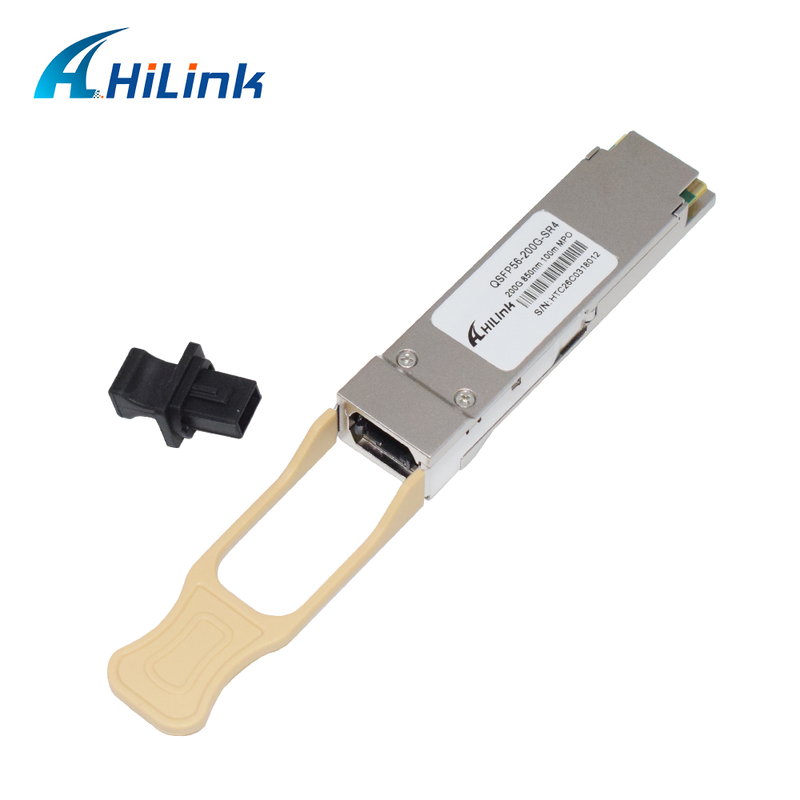

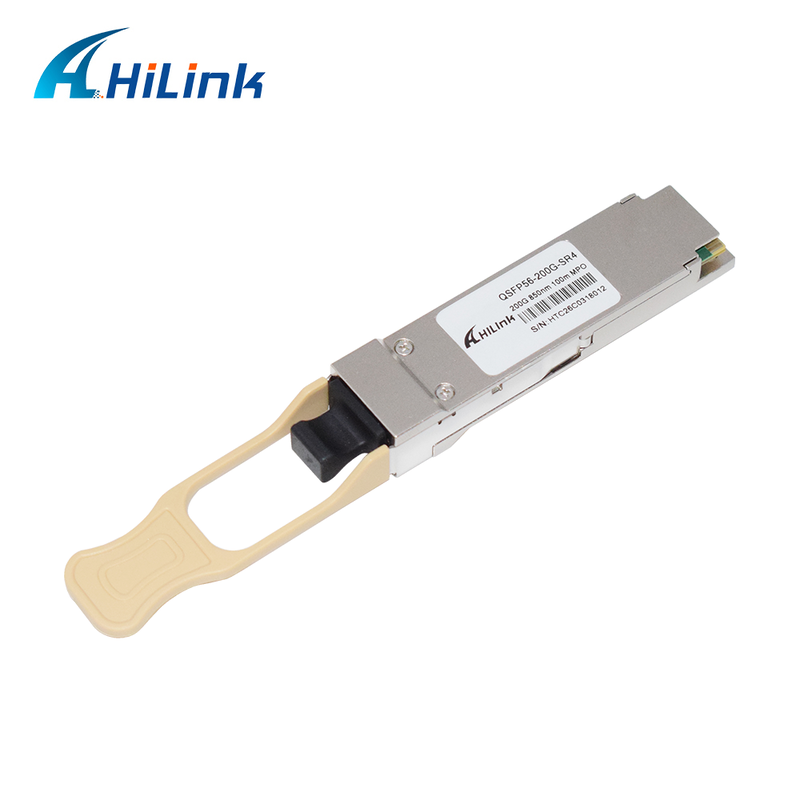

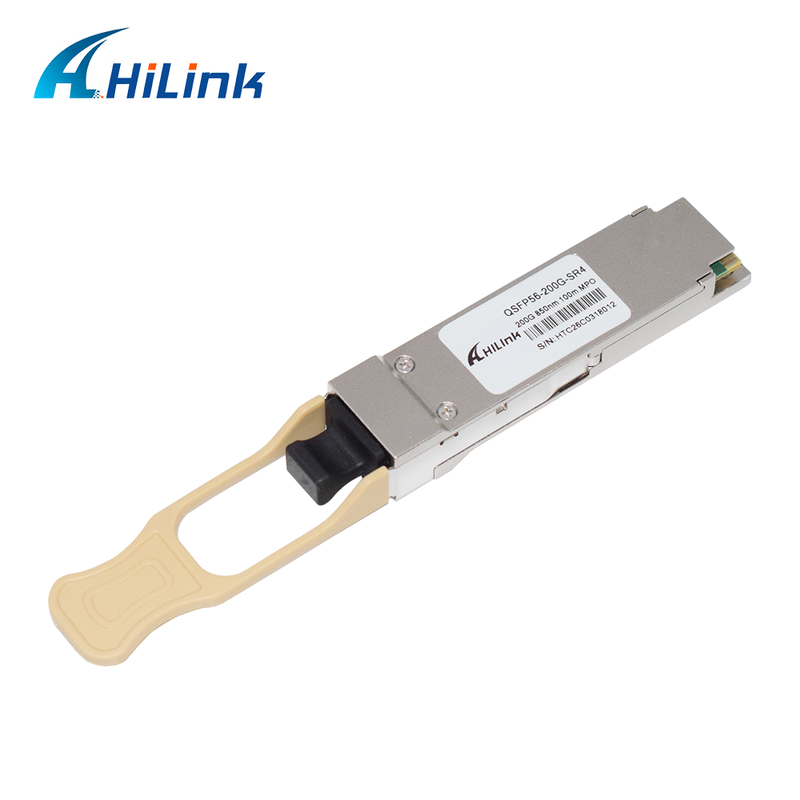

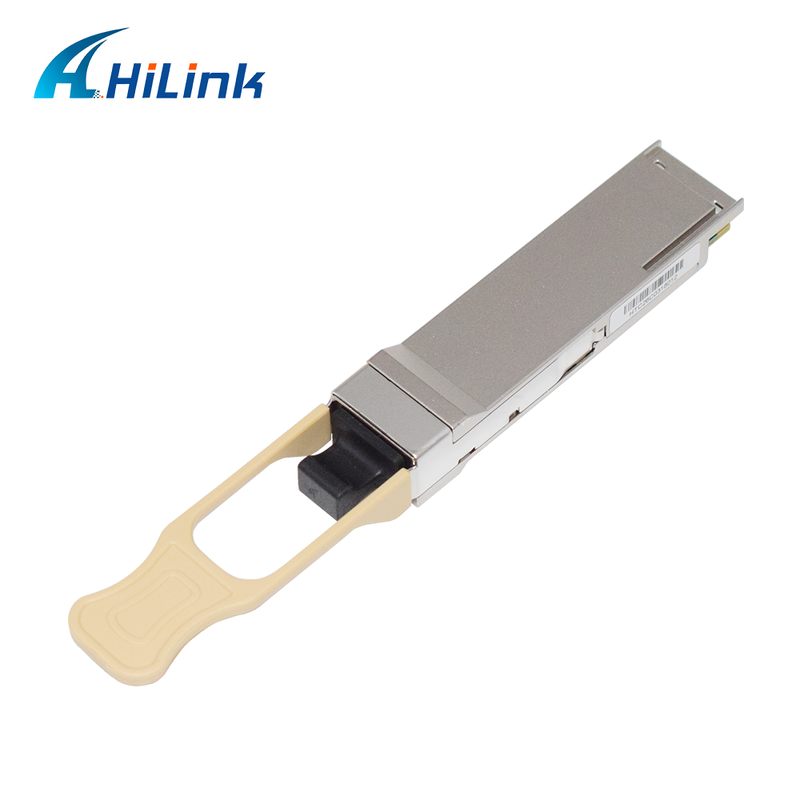

Name: Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP56-200G-SR4
Price: 900.00 USD
Availability: InStock

Para casa > produtos > Transceptor de QSFP+ >

Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring

Lugar de origem:

Cantão, China

Marca:

Hilink

Certificação:

CE RoHs

Número do modelo:

HL-QSFP56-200G-SR4

Contacte-nos

Solicite um orçamento

Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring

Detalhes do produto

Nome dos produtos:

QSFP56-200G-SR4

Walvelngth:

850 nm

Conector:

MPO-12

Distância máxima do cabo:

70m/100m

Garantia:

3 anos

OEM:

Apoiar

Prazo de entrega:

3-7 dias úteis

Faixa de temperatura da caixa:

0 ~ +70 ℃

ROHS:

Reclamação

Termos de pagamento e envio

Quantidade de ordem mínima

1PCS

Preço

Negociável

Detalhes da embalagem

Pacote normal ou OEM.

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C, T/T, Western Union

Habilidade da fonte

30 peças/mês

PRODUTOS CONEXOS

Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring

Obtenha o melhor preço

vídeo

Transceptor Óptico QSFP56 SR4 de 200G com Distância de 100m e Conector MPO12 Único para Transmissão de Dados de Alta Velocidade

Obtenha o melhor preço

Transceptor óptico QSFPDD 400G SR4 com conector MPO-12 para transmissão de 100 m

Obtenha o melhor preço

vídeo

Módulo OSFP 400G OSFP LR4 10km Duplex LC em Fibra Monomodo (SMF)

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver, With Diagnostic Monitoring

The QSFP56-200G-SR4 is a 4-Channel, Pluggable, Fiber-Optic QSFP56 for 200Gbps SR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber. The optical interface uses MPO receptacles.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

Key Features

Hot-pluggable QSFP56 form factor
Data Rate up to 53.125 Gb/s PAM4 per lane
4x53Gbps PAM4 transmitter and PAM4 receiver
4 channels 850nm VCSEL laser array and 4 channels PIN photo-detector array
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Single 3.3V Power Supply and Power Dissipation: QSFP56-200G-SR4C< 5.5W QSFP56-200G-SR4B< 6W
MPO-12 connector
Operating Case Temperature: 0℃~+70℃
RoHS compliant

Applications

200G BASE-SR4 Ethernet

Company Information

OEM/ODM orders are available upon request.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Portfolio

We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union.

What shipping methods do you offer?

Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with mainstream network switches and equipment.

How to place an order?

1. Confirm order details - provide the model and quantity you need
2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
3. Confirm and ship goods - tracking number will be sent promptly
4. We'll help track your shipment until safe delivery
