HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Lugar de origem:

China

Marca:

HiLink or OEM

Certificação:

CE FCC ROSH

Número do modelo:

HL-SFP28-LR-10KM

Contacte-nos
Solicite um orçamento
HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers
Detalhes do produto
Velocidade de dados:
25 Gbps
Comprimento de onda:
1310 nm
Tipo de conector:
LC
Distância de transmissão:
10 km
Consumo de energia:
<1,2W
Temperatura operacional:
-40°C a +85°C
Termos de pagamento e envio
Quantidade de ordem mínima
1 unidade
Preço
Negociável
Detalhes da embalagem
Normal ou OEM
Tempo de entrega
5-8 dias úteis
Termos de pagamento
T/T, União Ocidental, Paypal
Habilidade da fonte
2000pcs pela semana
PRODUTOS CONEXOS
Bom preço. HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach on-line

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Obtenha o melhor preço
Bom preço. HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers on-line

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Obtenha o melhor preço
Bom preço. 100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Transceptor Óptico DOM on-line vídeo

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Transceptor Óptico DOM

Obtenha o melhor preço
Bom preço. QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm BIDI Transceptor Óptico EML+APD Transceptor SFP on-line vídeo

QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm BIDI Transceptor Óptico EML+APD Transceptor SFP

Obtenha o melhor preço
Contacte-nos
Contacte agora
Descrição do produto
HL-SFP28-LR-10KM 25G SFP28 10km Dual LC Transceivers
Product Overview
The HL-SFP28-LR-10KM Transceiver is designed for 10km reach service 25.78Gb/s 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It features low power consumption, operates on a 3.3V DC power supply, and is available in industrial temperature range. Compliant with SFP28 MSA, SFF-8431 and SFF-8432 standards.
The optical assembly features low jitter and low bit error rate with a DML laser transmitter and PIN/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.
Key Features
  • Operating data rate up to 25.78Gbps
  • Rate Adaptation
  • Up to 10km transmission distance
  • High sensitivity Pin photodiode and TIA
  • LC duplex connector
  • Hot pluggable 20pin connector
  • Low power consumption <1.2 W
  • Single +3.3V±5% power supply
  • Compliant with SFF-8472 & IEEE 802.3cc
  • Fully RoHS Compliant
  • Operating temperature range:
    • Commercial: 0°C to +70°C
    • Industrial: -40°C to +85°C
Applications
  • Data Center Backbone
  • Ethernet Switches
  • High-speed Servers
  • High-performance Computing Clusters
  • SAN, Routers, Hubs, Load Balancer

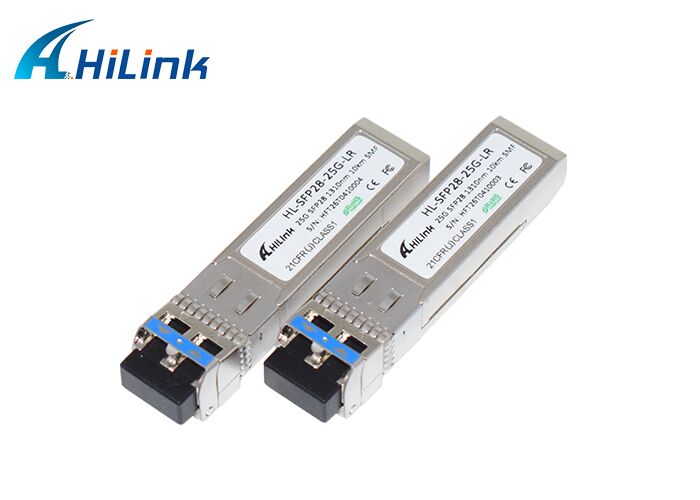

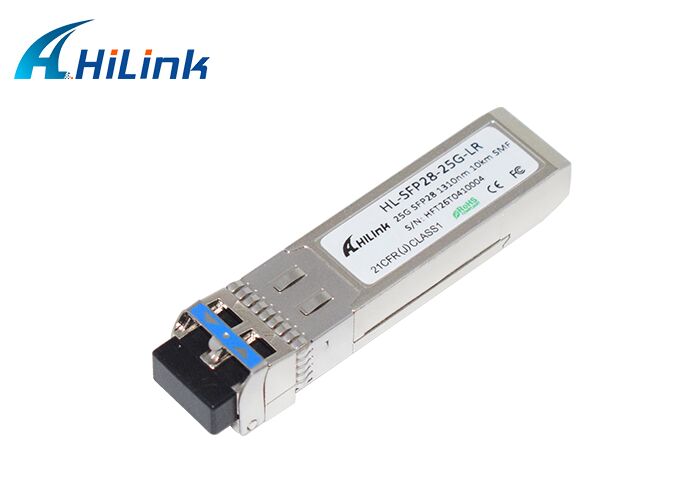

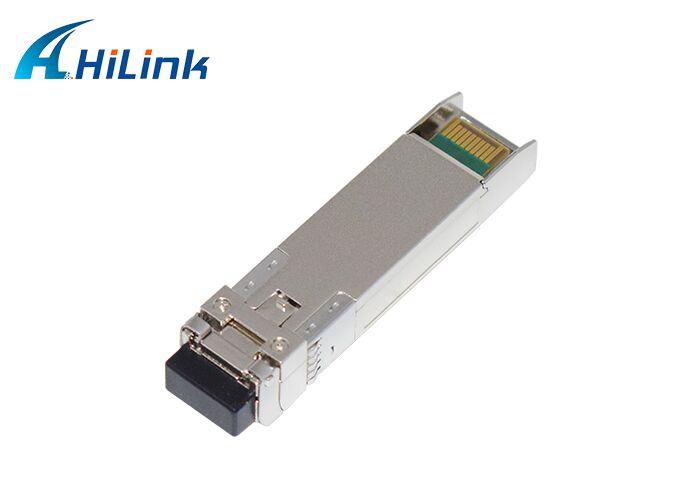

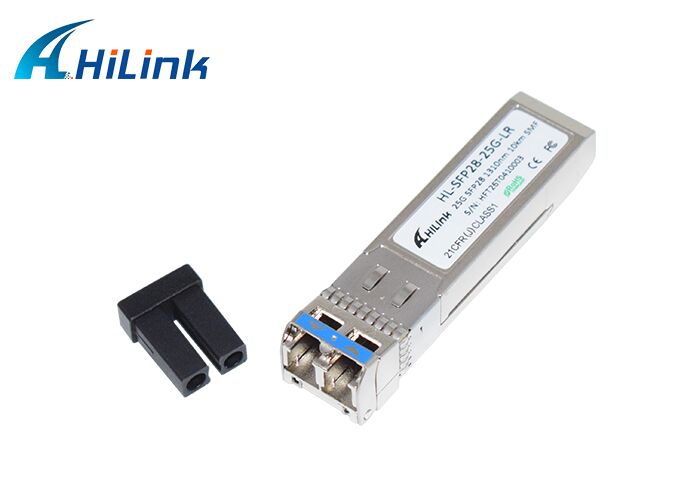

Product Images
HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers 0 HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers 1 HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers 2
