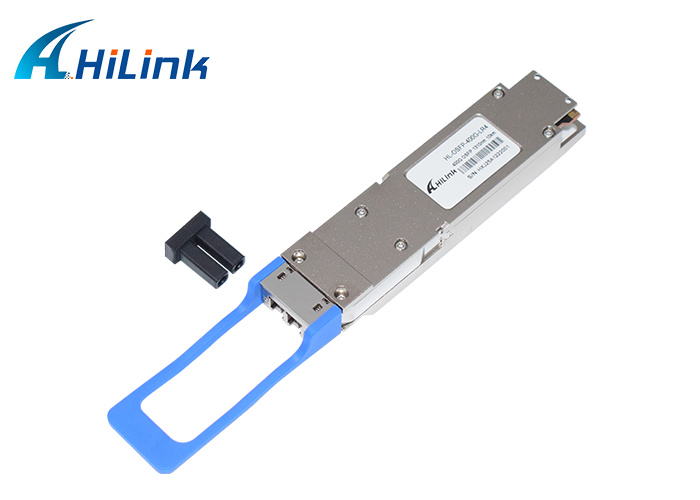

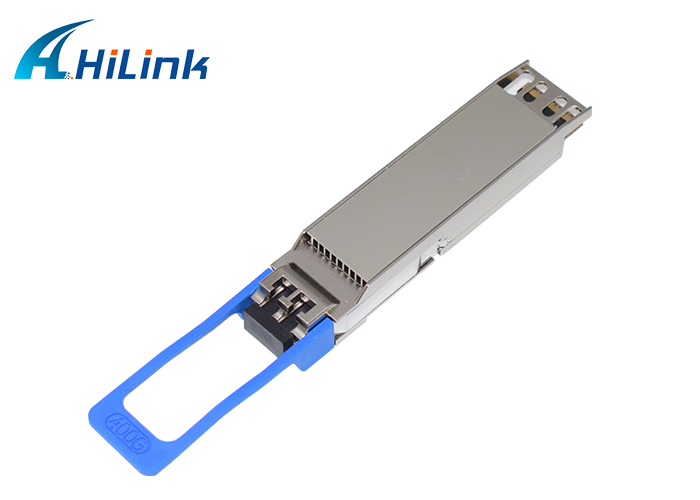

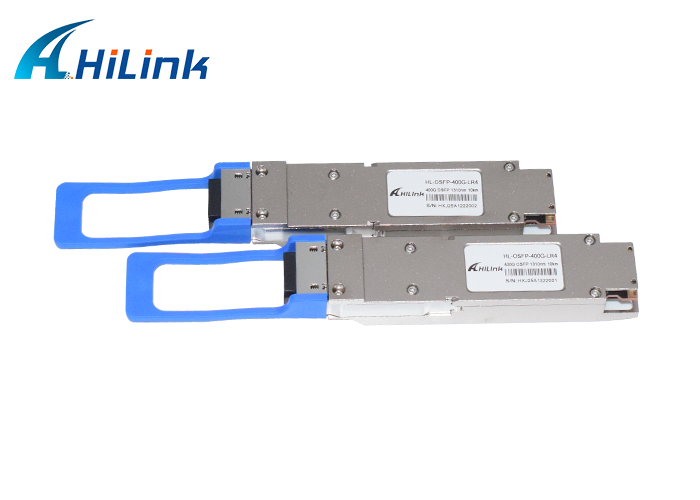

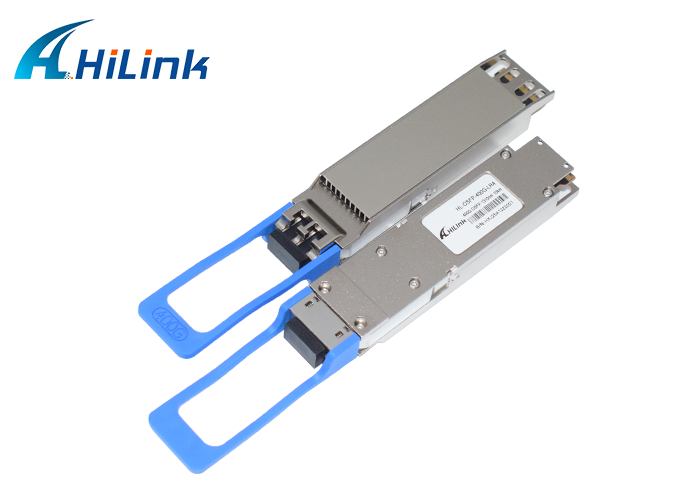

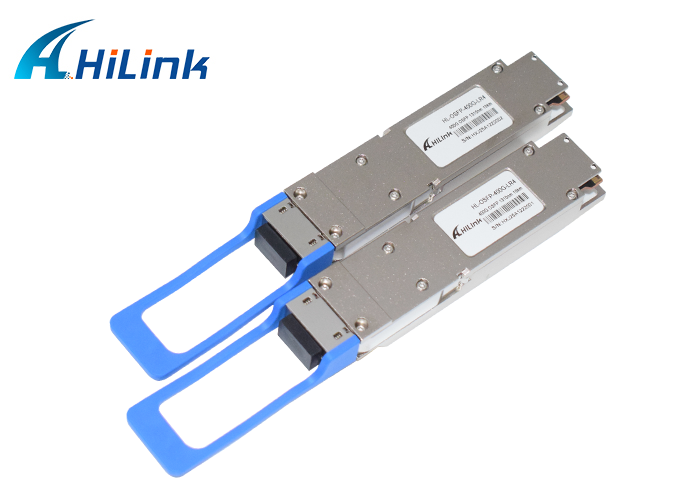

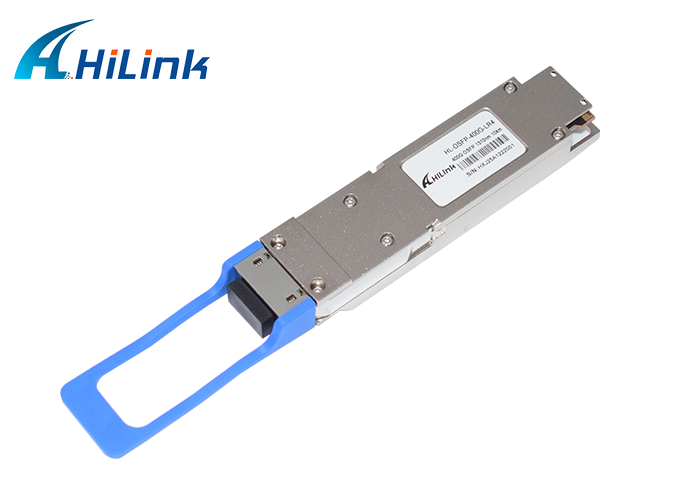

Name: OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-OSFP-400G-LR4
Price: 130.00 USD
Availability: InStock

Para casa > produtos > Módulo óptico do transceptor >

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Lugar de origem:

China

Marca:

HiLink or OEM

Certificação:

CE FCC ROSH

Número do modelo:

HL-OSFP-400G-LR4

Contacte-nos

Solicite um orçamento

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Detalhes do produto

Comprimento de onda:

1310 nm

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Preço

Negociável

Detalhes da embalagem

Pacote normal ou OEM

Tempo de entrega

5-8 dias úteis

Termos de pagamento

T/T, União Ocidental, Paypal

Habilidade da fonte

2000pcs pela semana

PRODUTOS CONEXOS

25G SFP28 BIDI 10km/20km/40km/50km/60km Optic Module

Obtenha o melhor preço

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Obtenha o melhor preço

vídeo

Módulo 25G SFP28 BIDI 50km 1270/1310nm

Obtenha o melhor preço

vídeo

Transceptor Óptico QSFP28 100G BIDI ZR4 com Transmissão de 80KM e Conector LC

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

OSFP 400G LR4 1310nm 10KM Optical Transceiver

Product Overview

Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module features 8 independent electrical input/output channels operating up to 53.125Gbps per channel.

The integrated GearBox converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s.

Technical Specifications

Supports 425Gbps data rate
Single 3.3V Power Supply
Up to 10km transmission over Single Mode Fiber with KP4 FEC
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 8W
Case temperature range: 0°C to 70°C (commercial)

Applications

400G Ethernet networks
400G-LR4 applications
Data center infrastructure
InfiniBand systems

Technical Details

The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path incorporates a bi-directional PAM4 re-timer ASIC integrated with a 4-channel modulator driver, 4 externally modulated lasers, and one optical multiplexer.

On the receiver path, an optical de-multiplexer is coupled to 4 photodiodes, along with the PAM4 re-timer that includes a built-in 4-channel TIA array. The electrical interface is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs and OSFP MSA standards.
