Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

400G Data Rate OSFP Transceiver

10km Distance Optical Transceiver Module

1310nm Wavelength 400G Optical Module

Lugar de origem:

Cantão, China

Marca:

Hilink

Certificação:

CE RoHs

Número do modelo:

HL-OSFP-400G-LR4

Contacte-nos
Solicite um orçamento
Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission
Detalhes do produto
Nome do produto:
400G OSFP 10 km
Taxa de dados:
400G
Comprimento de onda:
1310 nm
Distância:
10 km
Garantia:
3 anos
DDM:
Sim
Prazo de entrega:
3-7 dias úteis
OEM:
apoiar
Termos de pagamento e envio
Quantidade de ordem mínima
1 unidade
Preço
Negociável
Detalhes da embalagem
Pacote normal ou OEM
Tempo de entrega
5-8 dias úteis
Termos de pagamento
L/C, T/T, Western Union
PRODUTOS CONEXOS
Bom preço. Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission on-line

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

Obtenha o melhor preço
Bom preço. HL-Cir-1310 3-Port Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box para Data Center on-line

HL-Cir-1310 3-Port Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box para Data Center

Obtenha o melhor preço
Bom preço. Hilink 100G QSFP28 Modulo de Transceptor Óptico com Distância de 100 km Taxa de Dados 100G e Conformidade ZR4+ on-line

Hilink 100G QSFP28 Modulo de Transceptor Óptico com Distância de 100 km Taxa de Dados 100G e Conformidade ZR4+

Obtenha o melhor preço
Bom preço. HL-QSFP28-100G-FR1 Transceptor Óptico QSFP28 FR Single Lambda de 100 Gbps com Alcance de 2 km on-line

HL-QSFP28-100G-FR1 Transceptor Óptico QSFP28 FR Single Lambda de 100 Gbps com Alcance de 2 km

Obtenha o melhor preço
Contacte-nos
Contacte agora
Descrição do produto
Hilink 400G OSFP 1310nm 10km SMF Duplex LC DDM Transceiver
Hilink's OSFP transceiver module is engineered for 400 Gigabit Ethernet applications, delivering reliable performance over 10km single mode fiber connections. This advanced optical solution supports high-speed data transmission with comprehensive digital diagnostics monitoring capabilities.
Technical Specifications
Data Rate: Supports 425Gbps aggregate data rate
Wavelength: 1310nm operating on ITU G.694.2 CWDM grid
Transmission Distance: Up to 10km over single mode fiber
Connector Type: Duplex LC
Power Supply: Single 3.3V
Power Consumption: < 8W
Operating Temperature: 0°C to 70°C (commercial grade)
Key Features
  • 8 independent electrical channels operating at 53.125Gbps each
  • Integrated GearBox converts 8x53.125Gbps electrical to 4x106.25Gbps optical signals
  • PAM4 modulation technology for enhanced data transmission
  • KP4 FEC support at host side for improved signal integrity
  • PIN and TIA array on receiver side for optimal performance
  • Compliant with IEEE 802.3bs 400GAUI-8 interface standards
  • OSFP MSA compliance ensures interoperability
  • Digital Diagnostics Monitoring (DDM) capabilities
  • Safety certifications: TUV/UL/FDA approved
  • RoHS compliant for environmental safety
Applications
This transceiver is ideal for 400G Ethernet networks, 400G-LR4 applications, data center infrastructure, and InfiniBand systems requiring high-bandwidth, long-distance optical connectivity.
Product Images

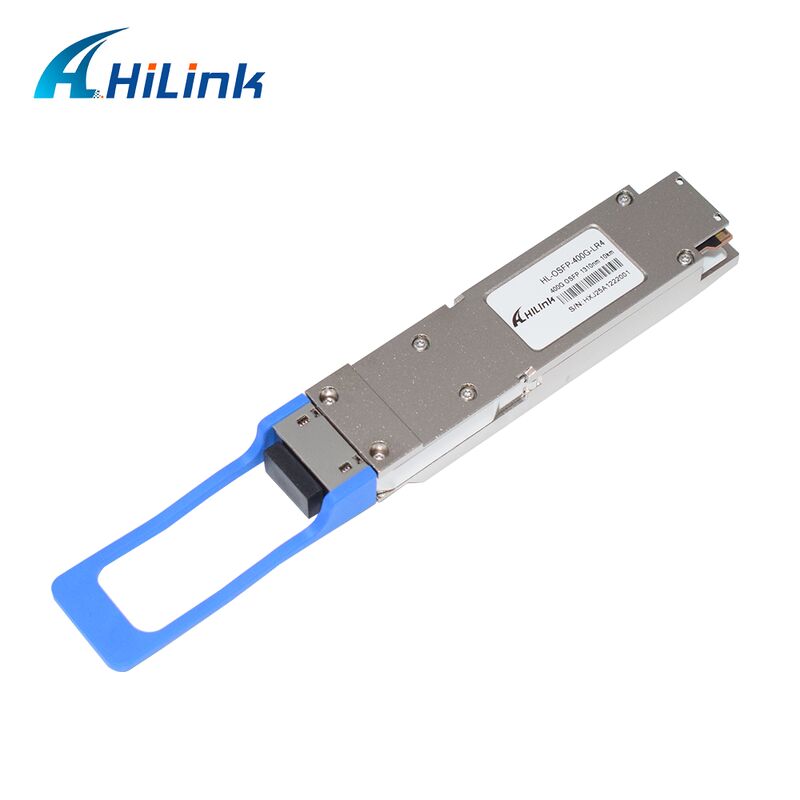

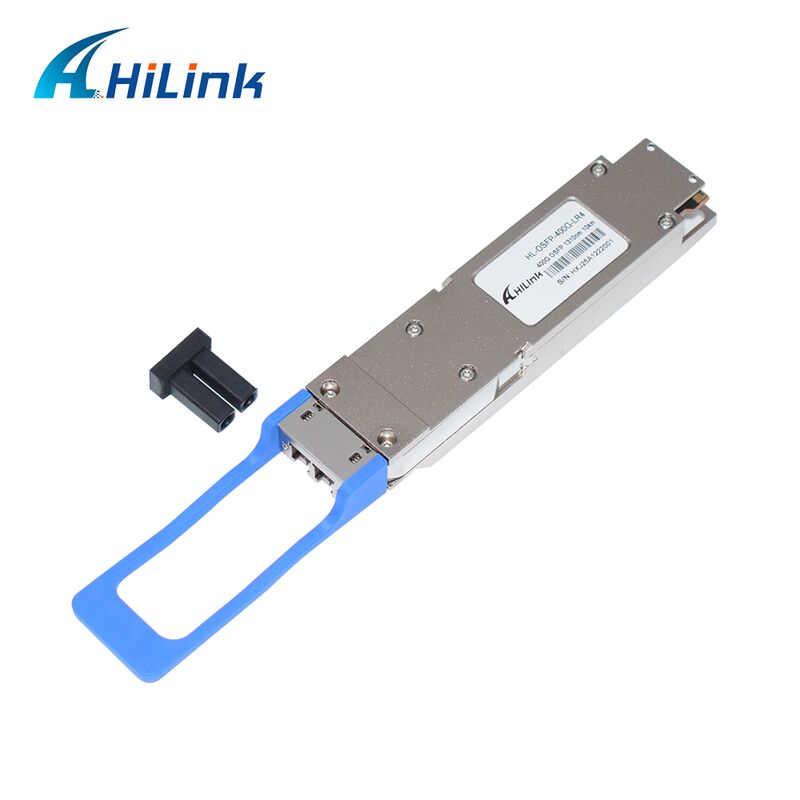

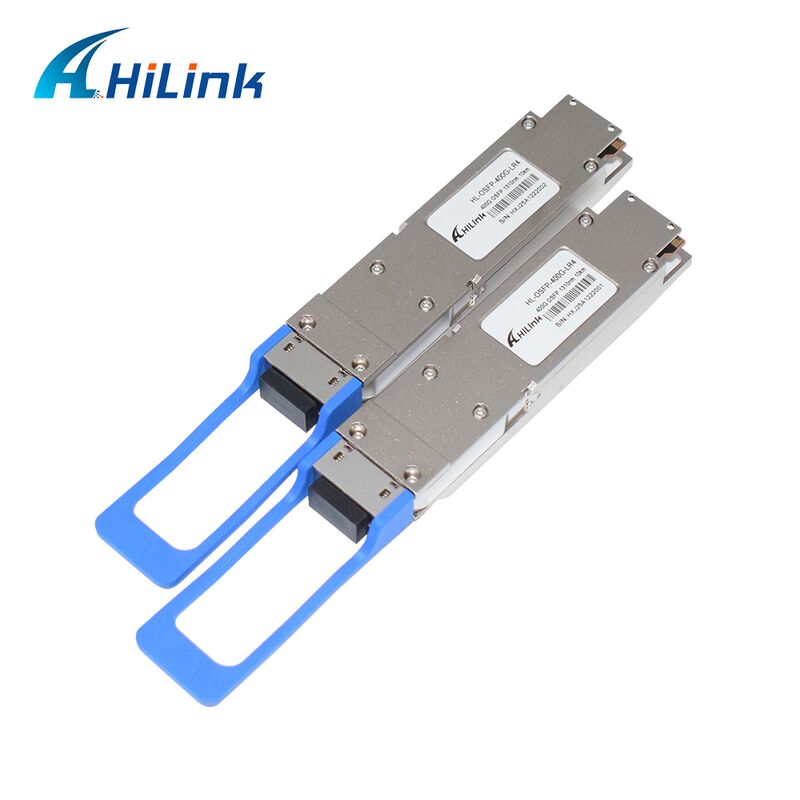

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 0 Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 1 Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 2
Manufacturer Information

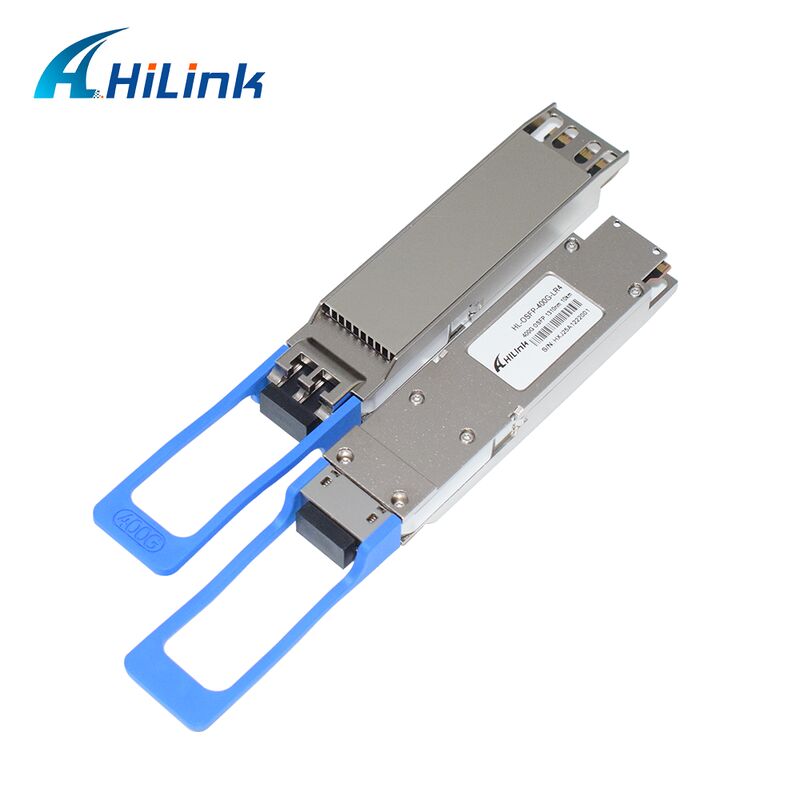

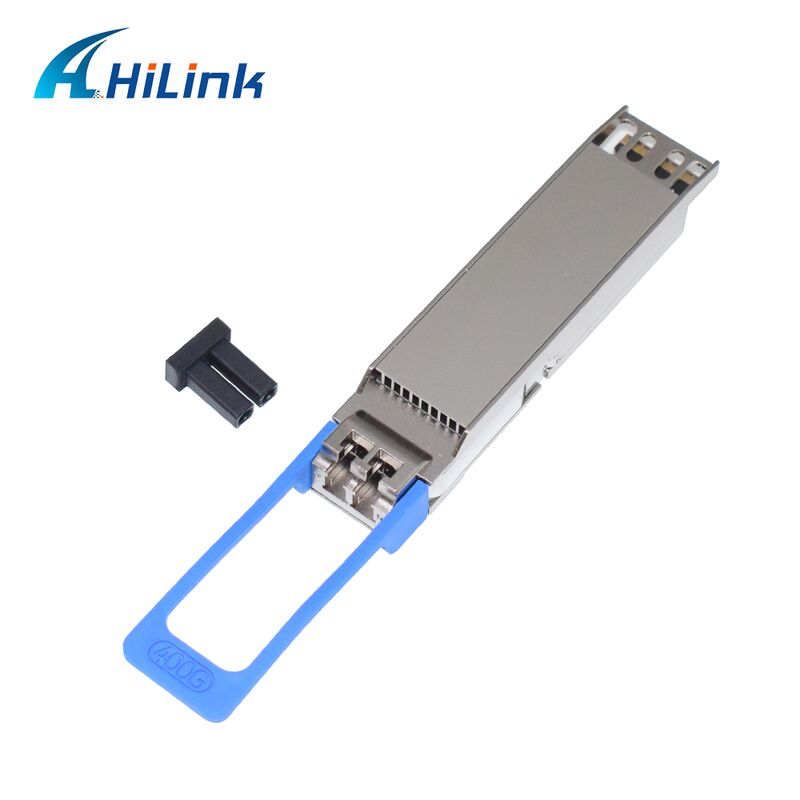

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 3 Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission 4
