Name: 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-LR4
Price: 1,130.00 USD
Availability: InStock

Para casa > produtos > Transceptor de QSFP+ >

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

4 CWDM lanes MUX/DEMUX design QSFP+ Transceiver

10km 40G QSFP+ LR4

Compliant with 40G Ethernet IEEE802.3ba Fiber Optic Transceiver

Lugar de origem:

Guangdong, China

Marca:

HILINK

Certificação:

CE FCC Rohs

Número do modelo:

HL-QSFP-40G-LR4

Contacte-nos

Solicite um orçamento

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

Detalhes do produto

Nome dos produtos:

40G QSFP+ 10Km

Connetor:

Duplex lc

Taxa de dados:

40G

Distância:

10 km

Faixa de temperatura:

0°C ~ +70°C

Certificação:

RoHS Compliant

Tipo:

Transceptores de fibra óptica, 40G QSFP+

Funções de diagnóstico digital:

Embutido

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Preço

EXW: 1084~1176USD/PCS

Detalhes da embalagem

O saco estático, plano plástico, caixa varejo, por exige

Tempo de entrega

5-8workingdays

Termos de pagamento

Western Union, T/T, L/C.

Habilidade da fonte

100pcs/mês

PRODUTOS CONEXOS

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

Obtenha o melhor preço

40Gb/s 20km QSFP+ Transceptor Óptico Hot Pluggable com Duplex LC Connector e DDM para 0°C a 70°C Operação

Obtenha o melhor preço

vídeo

Os DOM óticos QSFP+ 850nm 150m do transceptor DDM de MTP MPO MMF SFP

Obtenha o melhor preço

40G QSFP+ 40Km Transceptor com Duplex LC Connector

Obtenha o melhor preço

Contacte-nos

86-755-8317-6243

Contacte agora

Descrição do produto

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

Product Description

The HL-QSFP-40G-LR4 is a high-performance transceiver module designed for 10km optical communication applications. Compliant with 40GBASE-LR4 of the IEEE P802.3ba standard, this module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Key Features

4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
QSFP MSA compliant
Up to 10km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Operating temperature range: 0°C to 70°C
RoHS Compliant

Applications

Rack to rack connections
Data center switches and routers
Metro networks
40G BASE-LR4 Ethernet links

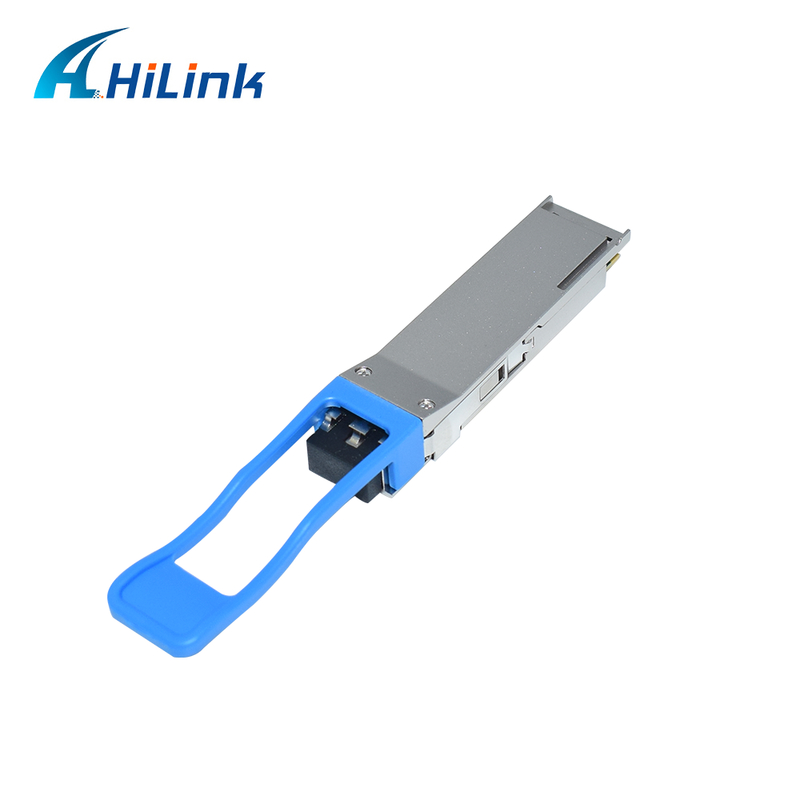

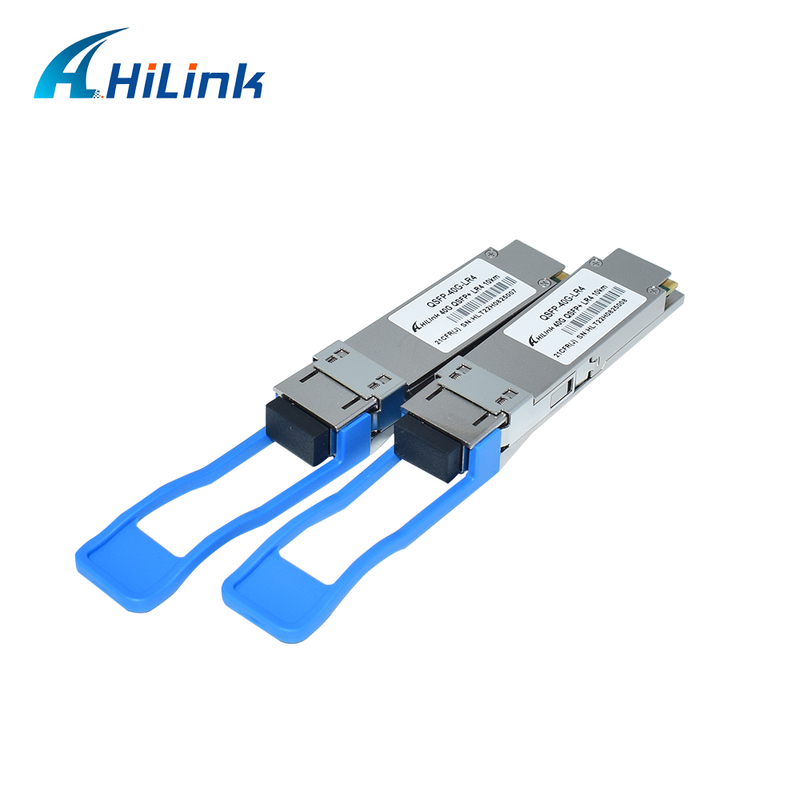

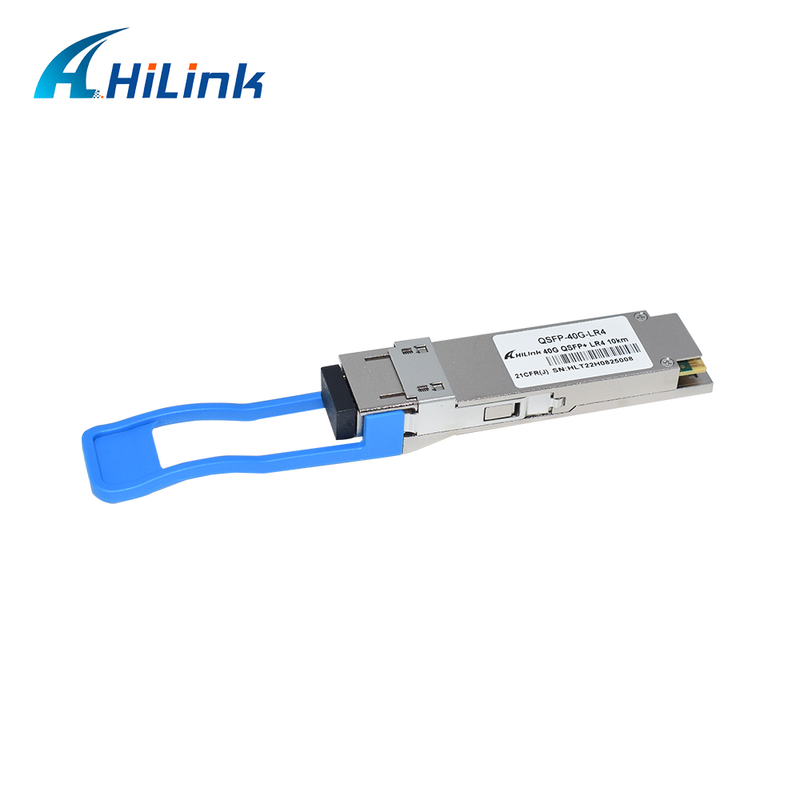

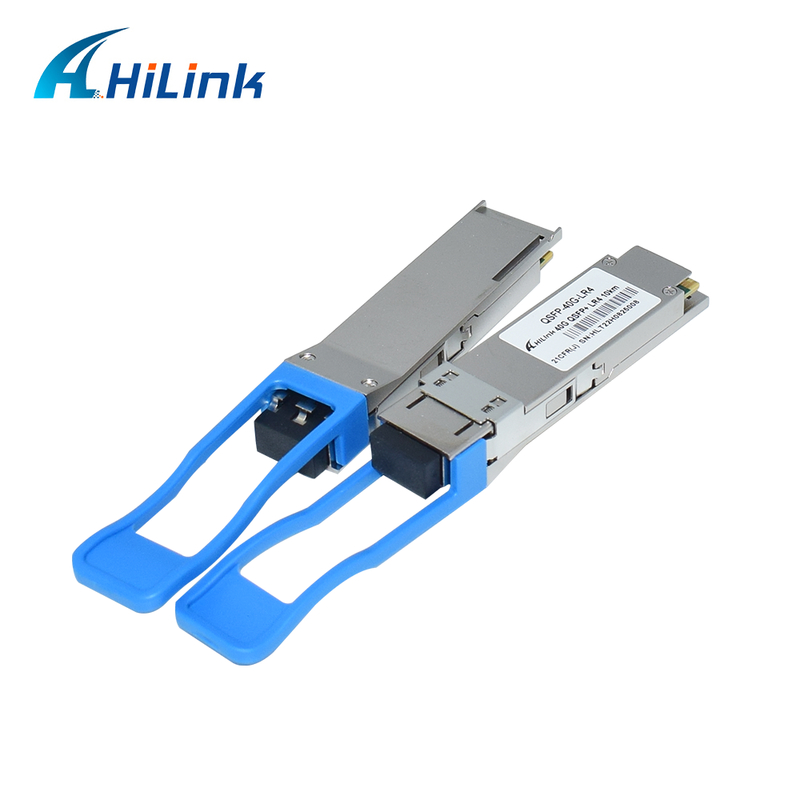

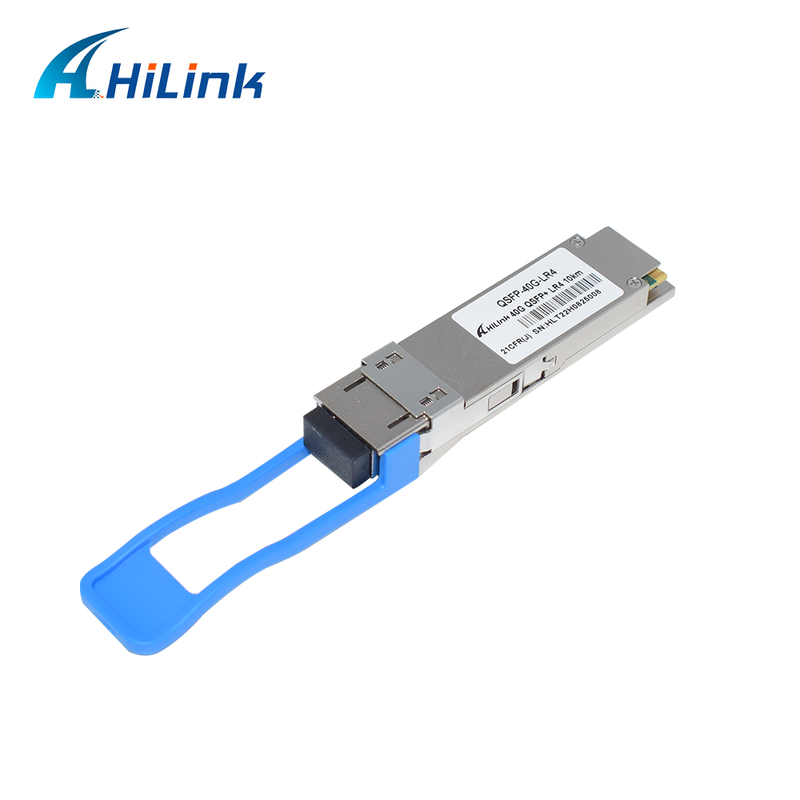

Product Images

Our Services

OEM and ODM: Custom OEM/ODM orders are available for this product.

Quality Guarantee

All advertised optical transceivers are brand new with new components and never use old or refurbished materials. Each unit undergoes functional testing and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply a comprehensive range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 3-7 days.
