Name: 40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-ER4
Price: 356.00 USD
Availability: InStock

Para casa > produtos > Transceptor de QSFP+ >

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Compliant with 40G Ethernet IEEE802.3ba QSFP+ Transceiver

4 CWDM lanes MUX/DEMUX design QSFP+ Transceiver

Single mode QSFP+ Transceiver

Lugar de origem:

Guangdong, China

Marca:

HILINK

Certificação:

CE FCC Rohs

Número do modelo:

HL-QSFP-40G-ER4

Contacte-nos

Solicite um orçamento

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Detalhes do produto

Nome dos produtos:

40G QSFP + 60Km

Connetor:

Duplex lc

Taxa de dados:

40G

Distância:

60 km

Faixa de temperatura:

0°C ~ +70°C

Certificação:

RoHS Compliant

Tipo:

Transceptores de fibra óptica, 40G QSFP+

Funções de diagnóstico digital:

Embutido

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Preço

EXW: 345~367USD/PCS

Detalhes da embalagem

O saco estático, plano plástico, caixa varejo, por exige

Tempo de entrega

5-8workingdays

Termos de pagamento

Western Union, T/T, L/C.

Habilidade da fonte

100pcs/mês

PRODUTOS CONEXOS

vídeo

Os DOM óticos QSFP+ 850nm 150m do transceptor DDM de MTP MPO MMF SFP

Obtenha o melhor preço

40G QSFP+ 40Km Transceptor com Duplex LC Connector

Obtenha o melhor preço

Conversor de Fibra HILINK 10G SFP+ para SFP+ 300M-80KM 3R Repeater

Obtenha o melhor preço

40Gb/s QSFP+ 100km Transceptor óptico Hot Pluggable C Band EML APD Duplex LC Connector Modo único DDM RoHS Compliant para 40G Ethernet

Obtenha o melhor preço

Contacte-nos

86-755-8317-6243

Contacte agora

Descrição do produto

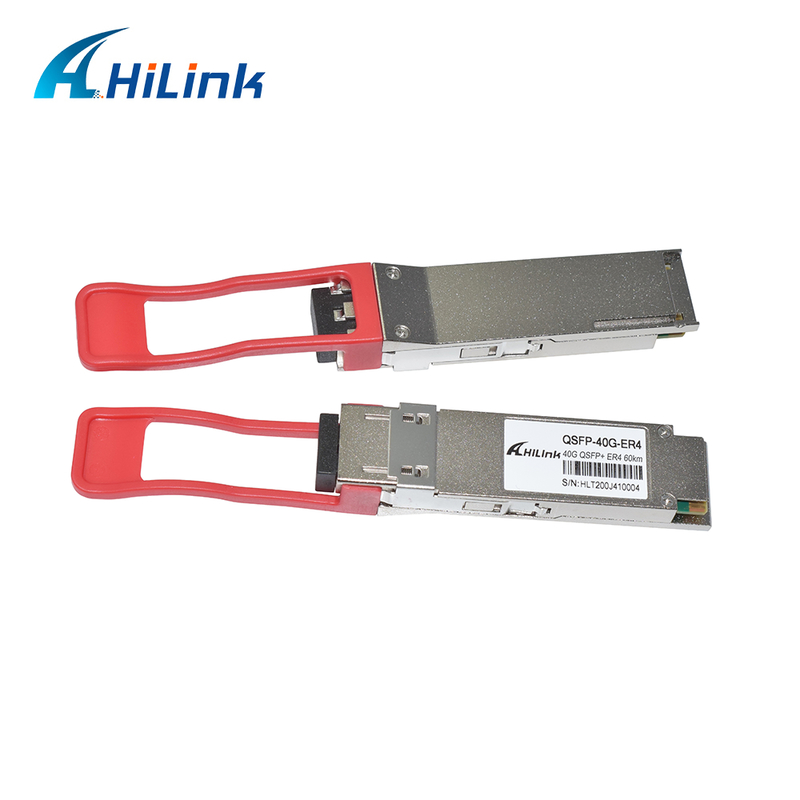

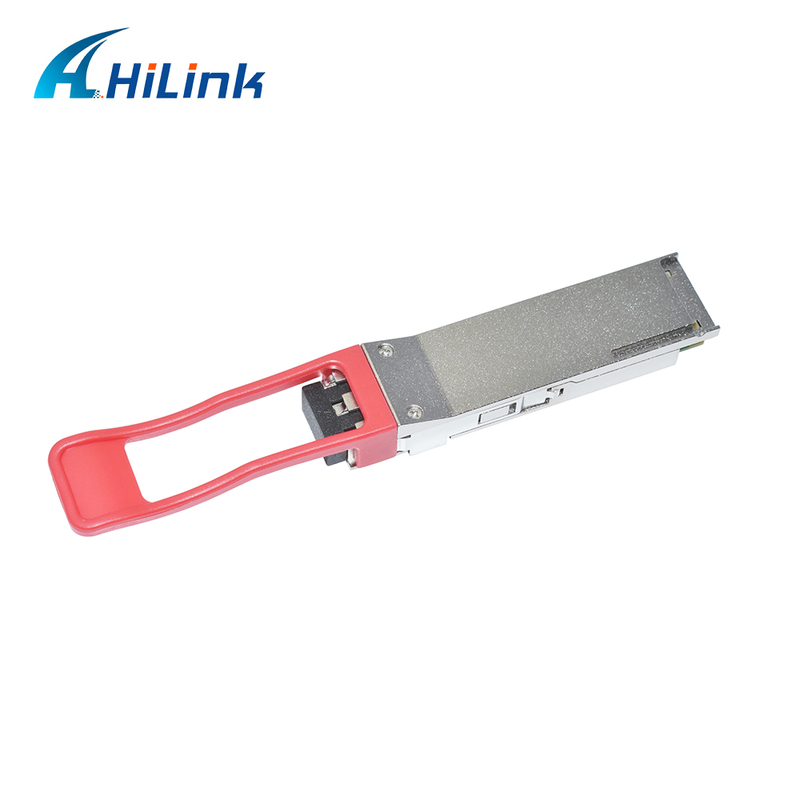

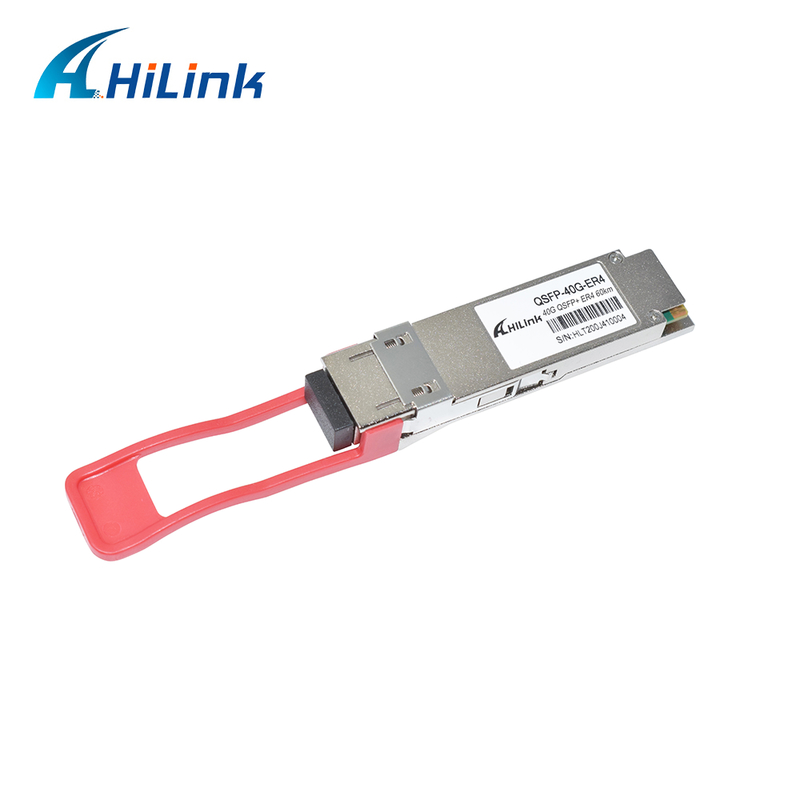

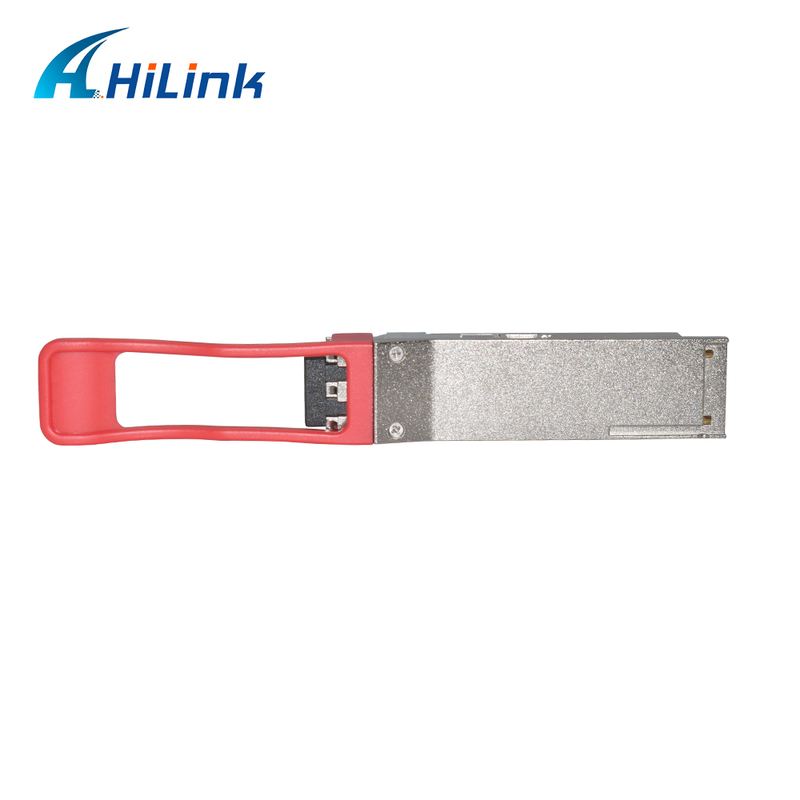

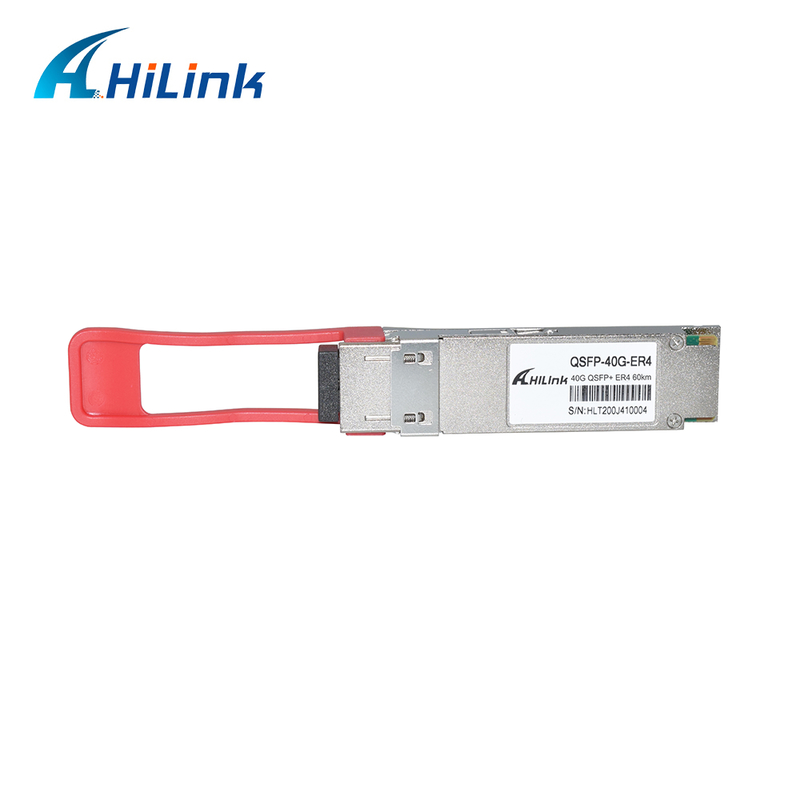

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Product Overview

The HL-QSFP-40G-ER4 is a high-performance transceiver module designed for 60km optical communication applications, compliant with 40GBASE-ER4 of the IEEE P802.3ba standard. This module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission.

Key Features

4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4 Lite
QSFP MSA compliant
APD photo-detector
Up to 60 km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Operating temperature range: 0°C to 70°C
RoHS Compliant

Applications

Rack to rack connections
Data center switches and routers
Metro networks
40G BASE-ZR4 Lite implementations

Our Services

OEM and ODM: Custom orders are available to meet specific requirements.

Quality Guarantee

All optical transceivers are brand new with new components, never using old or refurbished materials. Each unit undergoes functional and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply a comprehensive range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 3-7 days.
