Name: 40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: QSFP40G-4xSFP10G-DAC
Price: 893.00 USD
Availability: InStock

Para casa > produtos > dirija o cabo de cobre do anexo >

40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers

40G QSFP+ to 4*10G SFP+ DAC Cable

5M Length Direct Attach Copper Cable

10G/40Gigabit Ethernet DAC Cable

Lugar de origem:

CHINA

Marca:

Hilink

Certificação:

CE Rohs

Número do modelo:

QSFP40G-4xSFP10G-DAC

Contacte-nos

Solicite um orçamento

40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers

Detalhes do produto

Doença:

Novo em folha

Usar:

Fttx

Lugar de origem:

Guangdong, China

Distância:

5M (ou personalizado)

Logotipo:

Pode ser personalizado

Tipo de cabo::

cabo dac

Termos de pagamento e envio

Quantidade de ordem mínima

1 peças

Preço

Need to negotiate

Detalhes da embalagem

Caixa de plástico+caixa

Tempo de entrega

5-8 Dia de trabalho

Termos de pagamento

T/T, Western Union, Alipay, PayPal/WeChat/Comércio Assurance

Habilidade da fonte

2000 peças/semana

PRODUTOS CONEXOS

10G SFP+ para SFP+ Passive Direct Attach DAC Fiber Optic Cable 1M 10G DAC Cable

Obtenha o melhor preço

25G SFP28 para SFP28 DAC Cable 1M 2M 3M 5M Passive Direct Attach Twinax Copper Cable

Obtenha o melhor preço

2m SFP-H10GB-CU2M 10G SFP+ Passive Direct Attach Copper Twinax DAC Cable

Obtenha o melhor preço

400G QSFP-DD DAC Cable 400G para 8 x 50G SFP56 Breakout Cable

Obtenha o melhor preço

Contacte-nos

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contacte agora

Descrição do produto

High Quality 40G QSFP+ to 4*10G SFP+ 5M Copper DAC Cable Breakout Passive Fiber Optic Equipment

Product Description

The QSFP+ to 4x SFP+ Passive cable assemblies are high-performance, cost-effective solutions for SFP+ and QSFP+ equipment interconnects. These hybrid cables comply with SFF-8436 and SFF-8431 specifications, offering low power consumption for short-reach interconnect applications. Each lane supports data transmission rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Key Features

Hybrid cable conforms to Small Form Factor SFF-8436 and SFF-8431 standards
Supports multi-gigabit data rates: 1 Gb/s - 10 Gb/s (per channel)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Hybrid cable link length up to 5m (passive limiting)
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
Power Supply: +3.3V
Low power consumption: 0.02 W (typical)
Operating Temperature Range: 0°C to 70°C

Applications

10G/40Gigabit Ethernet
InfiniBand 4x SDR, DDR, QDR
Switches, Routers, and HBAs
Data Centers
Fiber Channel

QSFP Cable Series

Part Number	Description
HL-QSFP+40G-Optical cable
HL-QSFP-40G-AOC1M	QSFP+ to QSFP+, Active optical cable 1M
HL-QSFP-40G-AOC3M	QSFP+ to QSFP+, Active optical cable 3M
HL-QSFP-40G-AOC5M	QSFP+ to QSFP+, Active optical cable 5M
HL-QSFP-40G-AOC7M	QSFP+ to QSFP+, Active optical cable 7M
HL-QSFP-40G-AOC10M	QSFP+ to QSFP+, Active optical cable 10M
HL-QSFP-40G-AOC20M	QSFP+ to QSFP+, Active optical cable 20M
HL-QSFP-40G-AOC30M	QSFP+ to QSFP+, Active optical cable 30M
HL-QSFP-40G-AOC50M	QSFP+ to QSFP+, Active optical cable 50M
HL-QSFP-40G-AOC100M	QSFP+ to QSFP+, Active optical cable 100M
HL-QSFP+40G Copper Cable
HL-QSFP-H40G-CU1M	QSFP+ to QSFP+ Passive Copper Cable 1M
HL-QSFP-H40G-CU2M	QSFP+ to QSFP+ Passive Copper Cable 2M
HL-QSFP-H40G-CU3M	QSFP+ to QSFP+ Passive Copper Cable 3M
HL-QSFP-H40G-CU4M	QSFP+ to QSFP+ Passive Copper Cable 4M
HL-QSFP-H40G-CU5M	QSFP+ to QSFP+ Passive Copper Cable 5M
HL-QSFP-H40G-ACU7M	QSFP+ to QSFP+ Active Copper Cable
HL-QSFP-H40G-ACU10M	QSFP+ to QSFP+ Active Copper Cable
HL-QSFP-4SFP+ Copper Cable
HL-QSFP-4SFP10G-CU0.5M	QSFP+ to 4SFP+ Passive Copper Cable 0.5M
HL-QSFP-4SFP10G-CU1M	QSFP+ to 4SFP+ Passive Copper Cable 1M
HL-QSFP-4SFP10G-CU3M	QSFP+ to 4SFP+ Passive Copper Cable 3M
HL-QSFP-4SFP10G-CU5M	QSFP+ to 4SFP+ Passive Copper Cable 5M
HL-QSFP-4SFP+ Optical Cable
HL-QSFP-4SFP10G-AOC1M	QSFP+ to 4SFP+ Active optical cable 1M
HL-QSFP-4SFP10G-AOC3M	QSFP+ to 4SFP+ Active optical cable 3M
HL-QSFP-4SFP10G-AOC5M	QSFP+ to 4SFP+ Active optical cable 5M
HL-QSFP-4SFP10G-AOC7M	QSFP+ to 4SFP+ Active optical cable 7M
HL-QSFP-4SFP10G-AOC10M	QSFP+ to 4SFP+ Active optical cable 10M

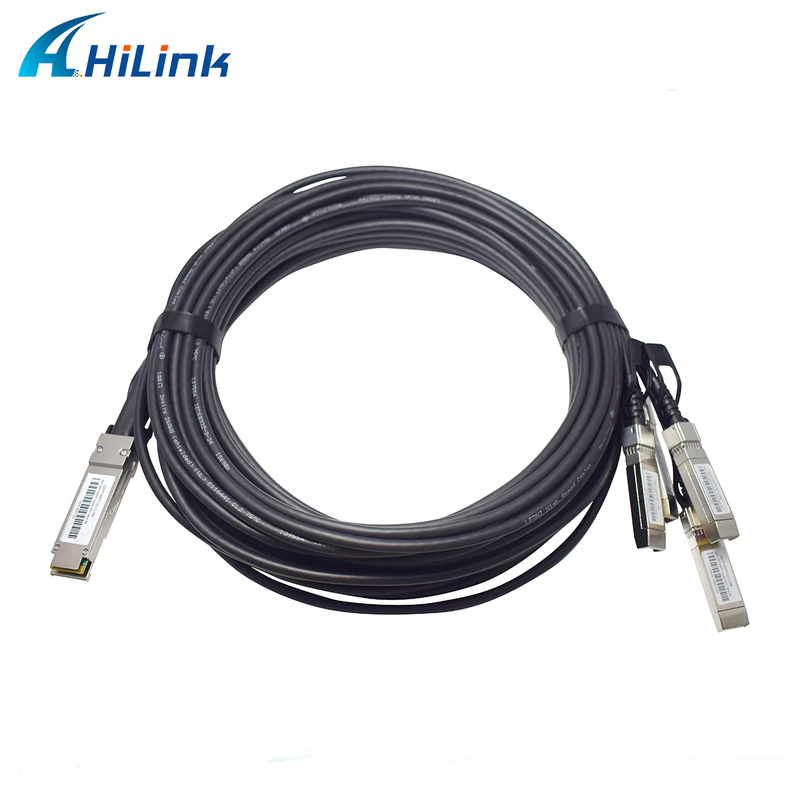

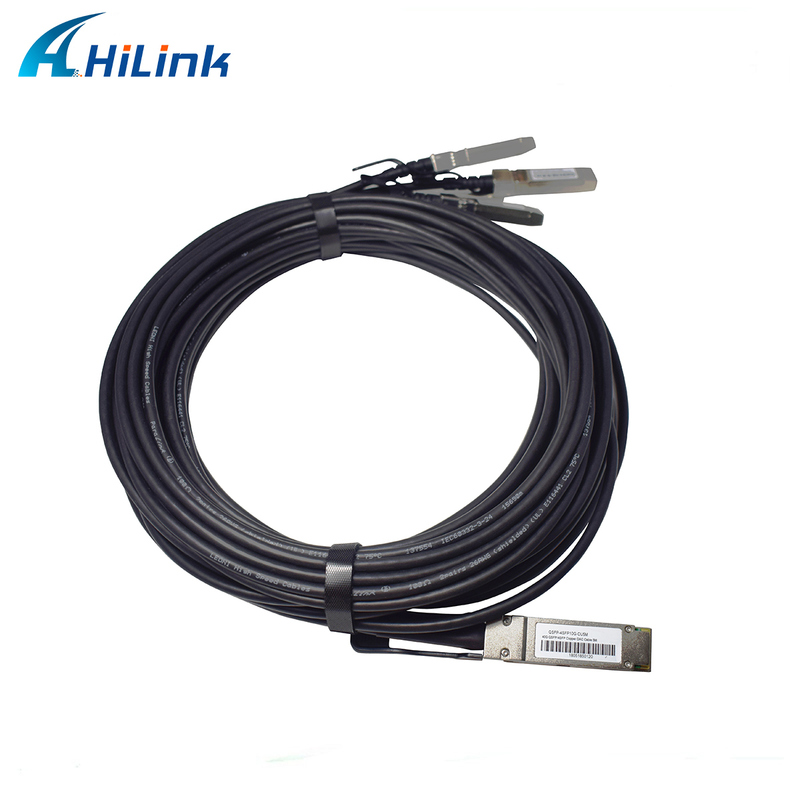

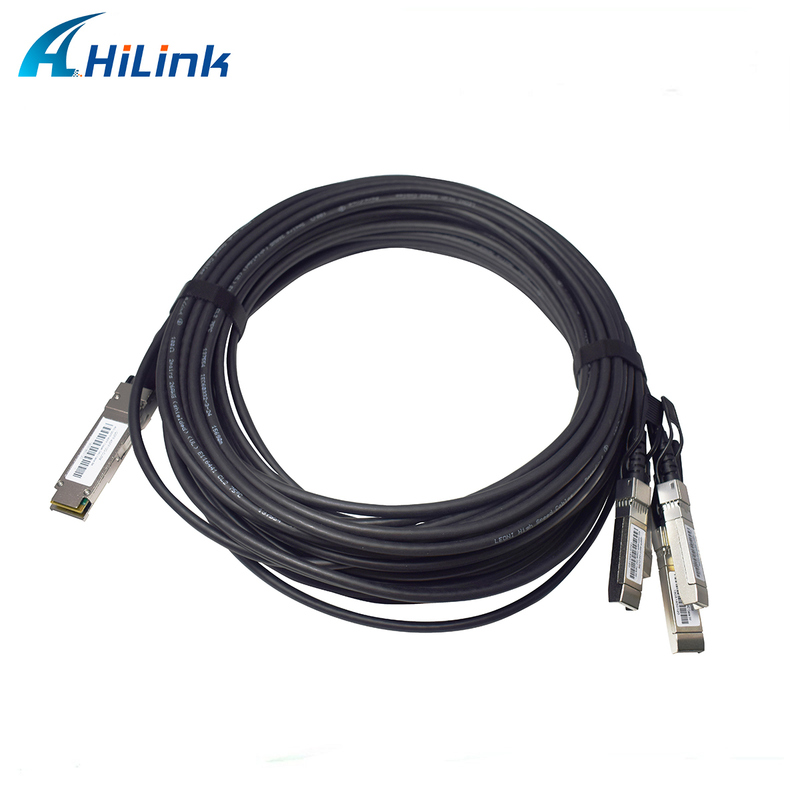

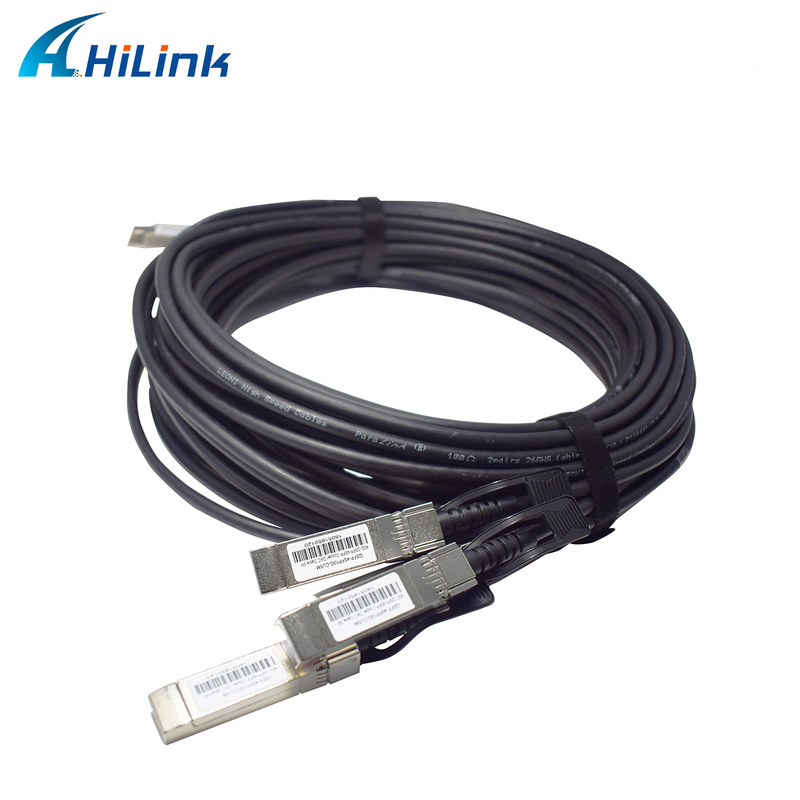

Product Image

Our Services

OEM and ODM: We accept OEM/ODM orders and can customize products according to your requirements, including designing product labels for your company.

Shipment: We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 1-5 days.

Guarantee: All optical transceivers are brand new with new components and have undergone functional and aging tests. We provide a 3-year warranty from the date of shipment.
