Name: High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-MINI 1550NM EDFA CATV
Price: 893.00 USD
Availability: InStock

Para casa > produtos > demux do mux do dwdm >

High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks

1550nm Fiber Amplifier

High-power EDFA

Built-in Optical Switch Mini EDFA

Lugar de origem:

Guangdong, China

Marca:

HILINK

Certificação:

CE FCC Rohs

Número do modelo:

HL-MINI 1550NM EDFA CATV

Contacte-nos

Solicite um orçamento

High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks

Detalhes do produto

Conector:

FC/APC ou SC/APC

Nome do produto:

MINI 1550NM CATV EDFA

Comprimento de onda operacional:

1529,16~1563,86nm

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Preço

Just contact me to know latest price

PRODUTOS CONEXOS

vídeo

Mini linha ótica amplificador ótico de 1550nm CATV EDFA do amplificador

Obtenha o melhor preço

Fibra dupla Pluggable do pacote DWDM Mux Demux da caixa do módulo LGX de 8CH DWDM com LC UPC

Obtenha o melhor preço

1U grade dupla da UIT da fibra da montagem em rack 8CH DWDM Mux Demux com LC UPC

Obtenha o melhor preço

Caixa frente e verso do ABS da faixa do LC UPC C da fibra dupla do equipamento 100GHZ DWDM MUX Demux do WDM 8CH

Obtenha o melhor preço

Contacte-nos

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contacte agora

Descrição do produto

Mini-High-power 1550nm Fiber Amplifier MINI EDFA

MINI EDFA 1550nm building optical amplifiers are mainly used in CATV FTTB network.

Applications

Single-mode fiber 1550nm amplification network
FTTH network
CATV network
Long distance trunk network.FTTx PON, max working wavelength: 1529.16~1563.86nm
All kinds of SDH/PDH transmission systems

Performance Characteristics

Built-in optical switch and backup optical source
Built-in optical fwdm, it can transmit broadband network and CATV together
Built-in 1550nm optical Transmitter for local CATV signal insertion
Adopts Er/Yb Codoped double-clad fiber technology
Dual CATV optical input ports: 2 optional
Olt input ports: 4-16 optional
Com Output ports: 4-16 optional
Optical output power: total output up to 5W(37dBm)
Low noise figure: <6dB when input is 0dBm
Intelligent temperature control system make the power consumption lower

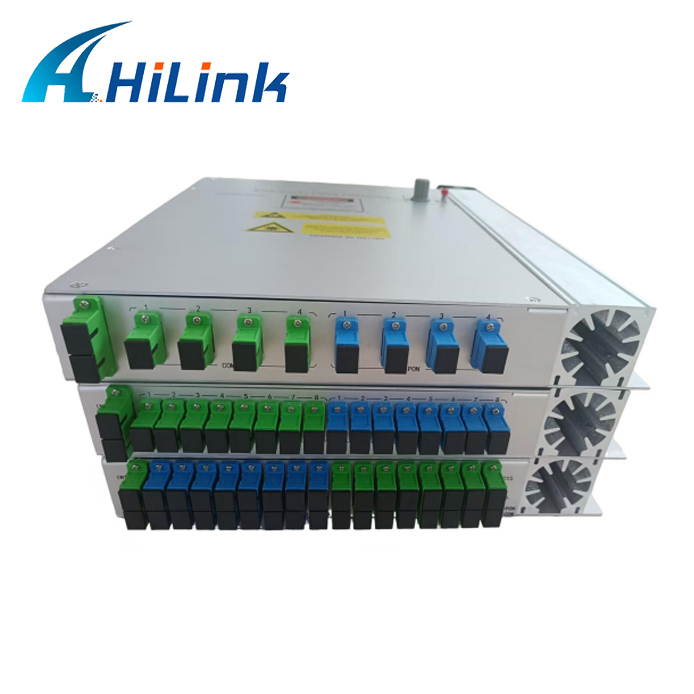

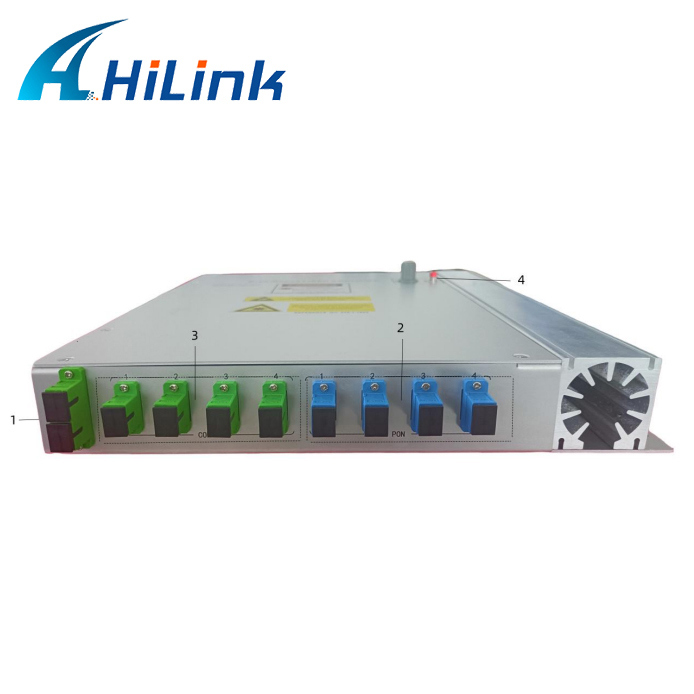

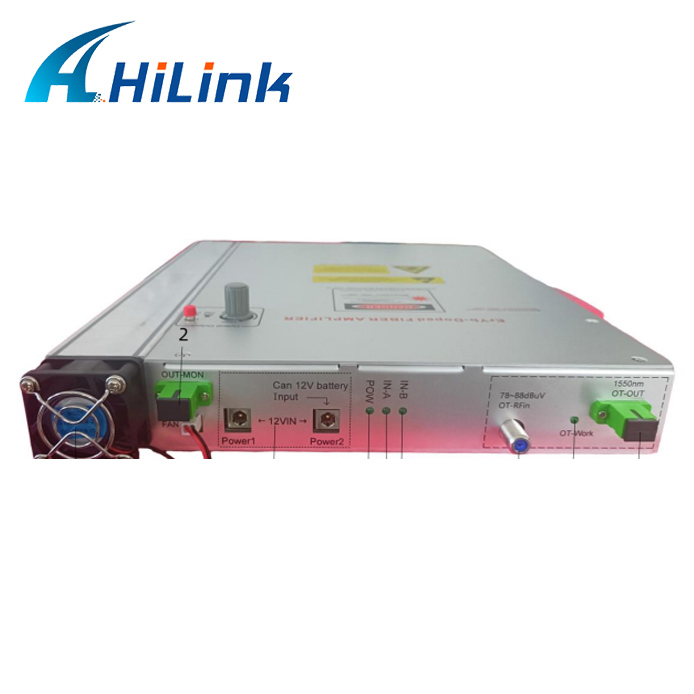

Product Images
