Name: 100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: QSFP28-100G-SRBD
Price: 130.00 USD
Availability: InStock

Para casa > produtos > Módulo óptico do transceptor >

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

QSFP28 SR BiDi optical transceiver

100G OM4 MMF transceiver module

LC optical transceiver with 100m range

Lugar de origem:

Guangdong, China

Marca:

Hilink

Certificação:

CE Rohs

Número do modelo:

QSFP28-100G-SRBD

Contacte-nos

Solicite um orçamento

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

Detalhes do produto

Nome do produto:

QSFP28-100G-SRBD

Taxa de dados:

100g

Alcançar:

70m com OM3, 100m com OM4 e 150m com OM5

Temperatura operacional:

0 a 70 ℃

Termos de pagamento e envio

Quantidade de ordem mínima

1 peças

Preço

Send Inquiry know latest price

Detalhes da embalagem

Caixa de plástico+caixa

Tempo de entrega

5-8 Dia de trabalho

Termos de pagamento

T/T, Western Union, Alipay, PayPal/WeChat/Comércio Assurance

Habilidade da fonte

2000 peças/semana

PRODUTOS CONEXOS

vídeo

Transceptor Óptico OSFP800 800G 2xSR4 Transceptor Óptico 12V Conector MPO

Obtenha o melhor preço

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimodo

Obtenha o melhor preço

25G SFP28 Modulo Ótico BIDI Conector de Fibra LC 0 a 70C 3km/10km/40km/60km

Obtenha o melhor preço

vídeo

Transceptor BIDI SFP28 25Gb/s 60km DDM

Obtenha o melhor preço

Contacte-nos

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contacte agora

Descrição do produto

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

Product Specifications

Attribute	Value
Product Name	QSFP28-BIDI-SR
Data Rate	100G
Reach	70m with OM3, 100m with OM4 and 150m with OM5
Operating Temperature	0 to 70℃

Product Overview

The 100G QSFP28 Bidi transceiver supports connections over multimode fiber (MMF) up to 70m with OM3, 100m with OM4 and 150m with OM5. It uses duplex LC connectors. The wavelengths are 850nm and 900nm.

Features

Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
Compliant to QSFP28 SFF-8636 Specification
Aggregate bandwidth of > 100Gbps
Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
QSFP28 MSA compliant
Capable of over 70m transmission on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Support 40G/100Gbps

Applications

100 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications

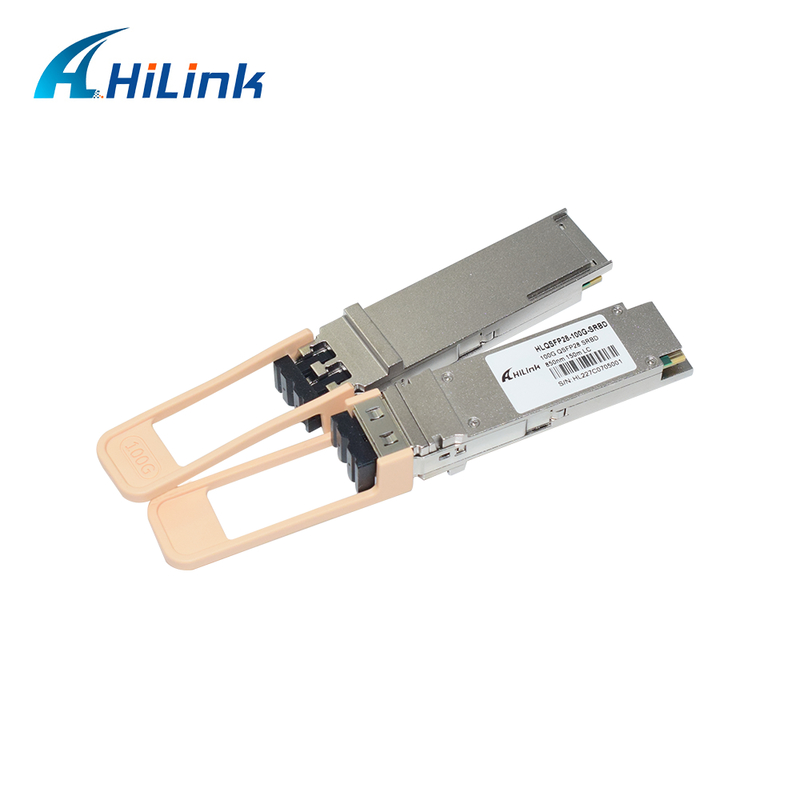

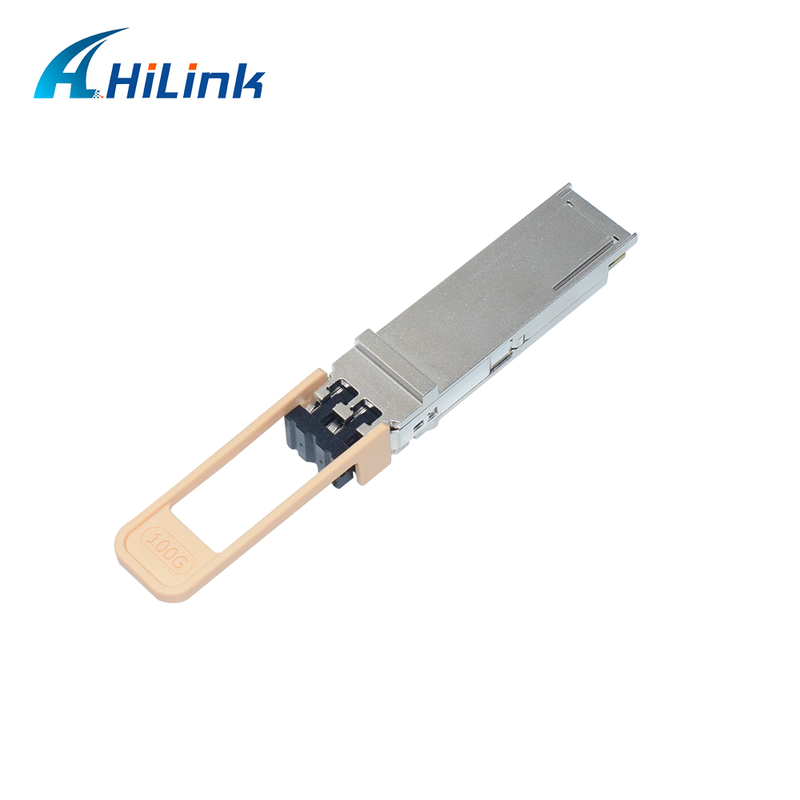

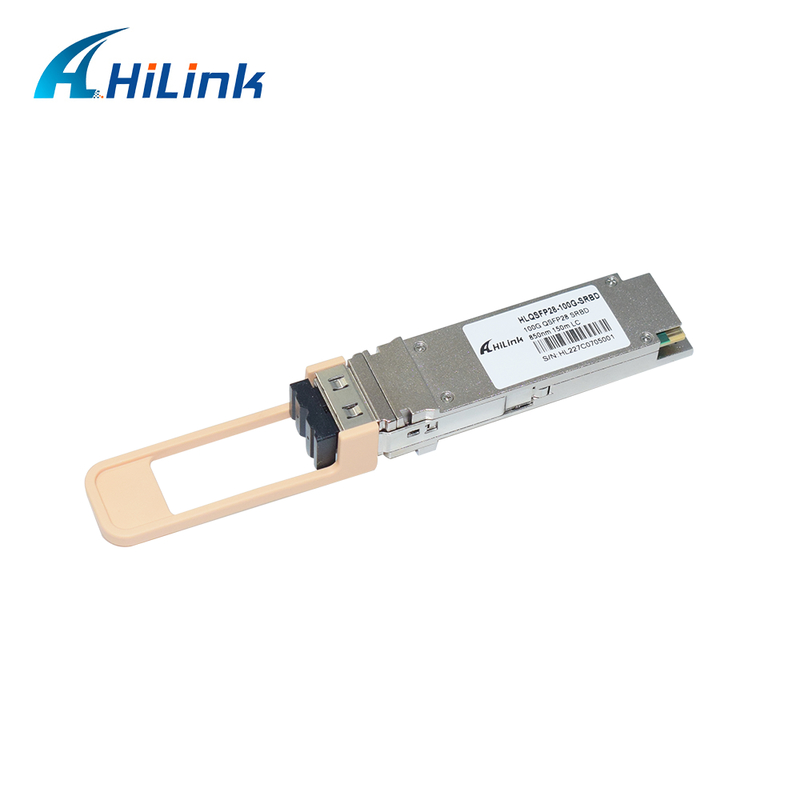

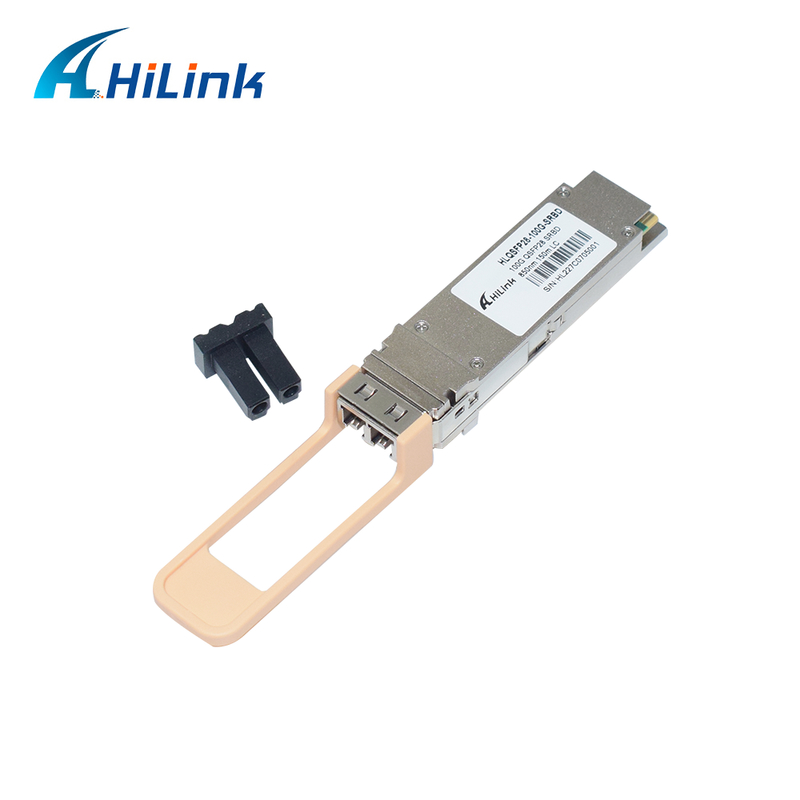

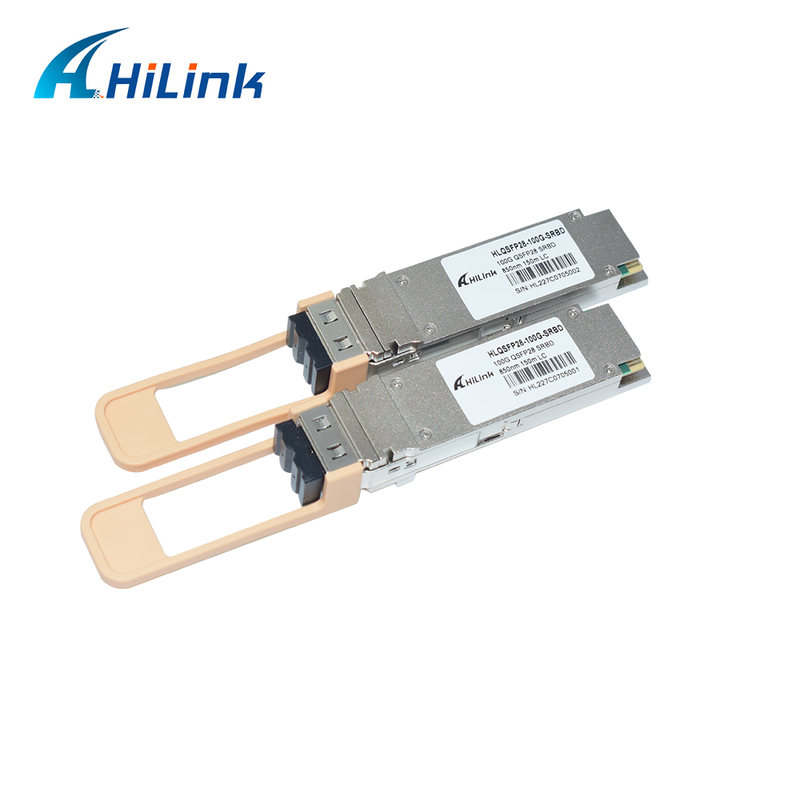

Product Images

Quality Assurance

Warranty & Quality Commitment:
All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
