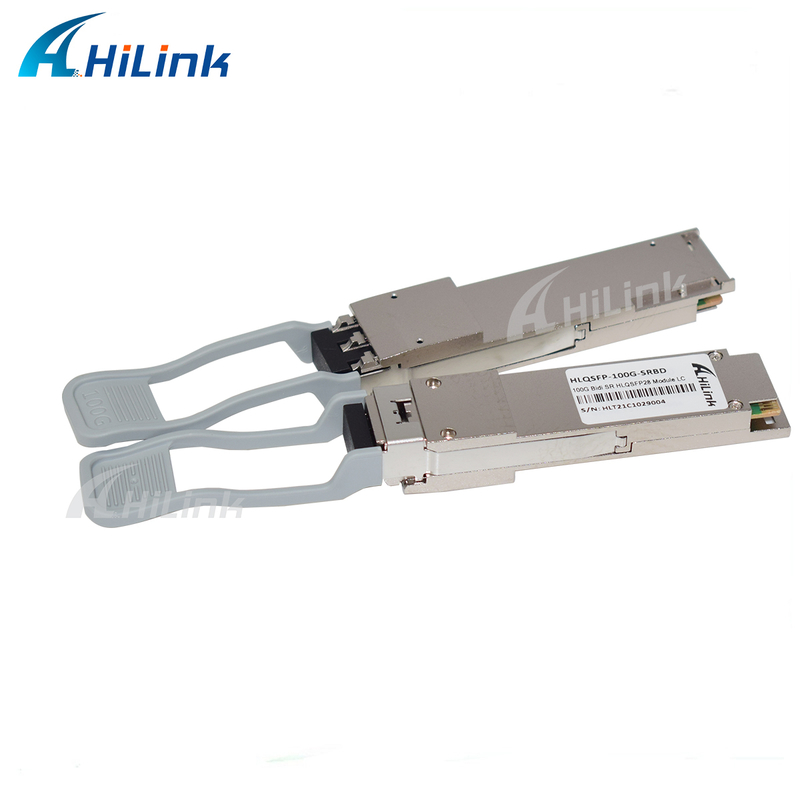

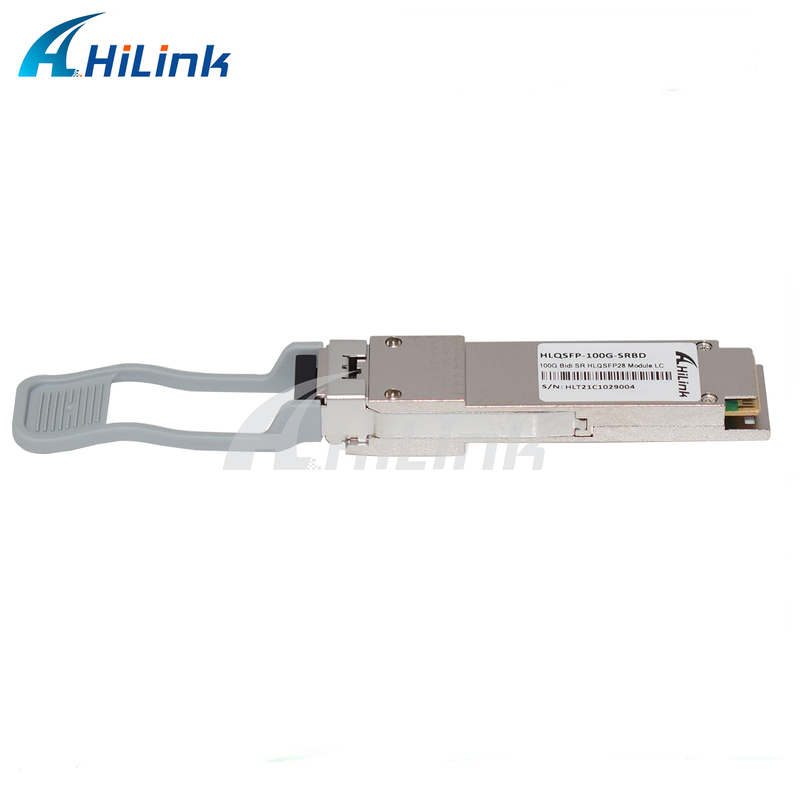

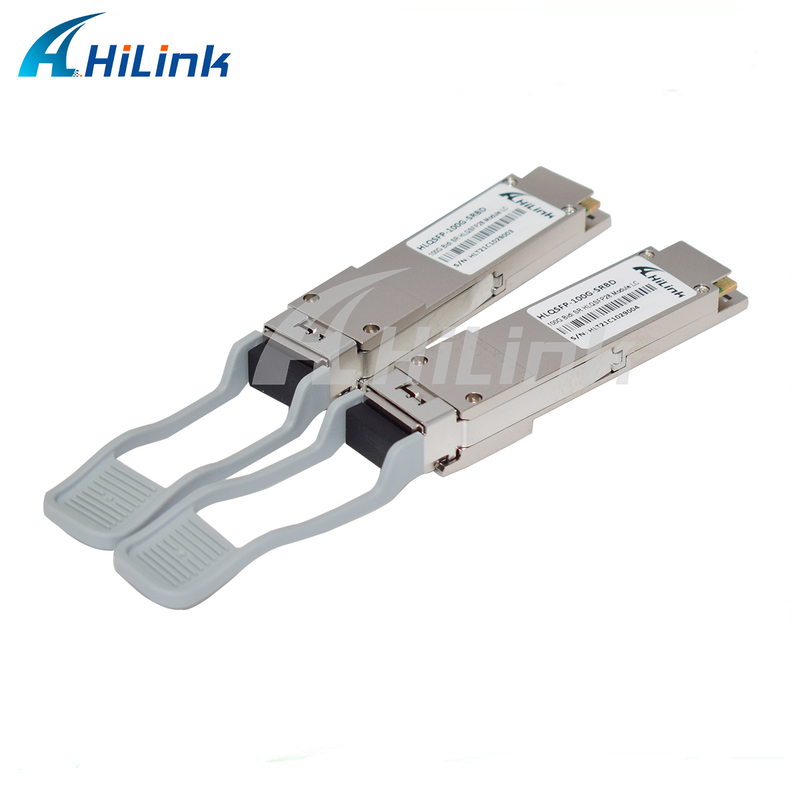

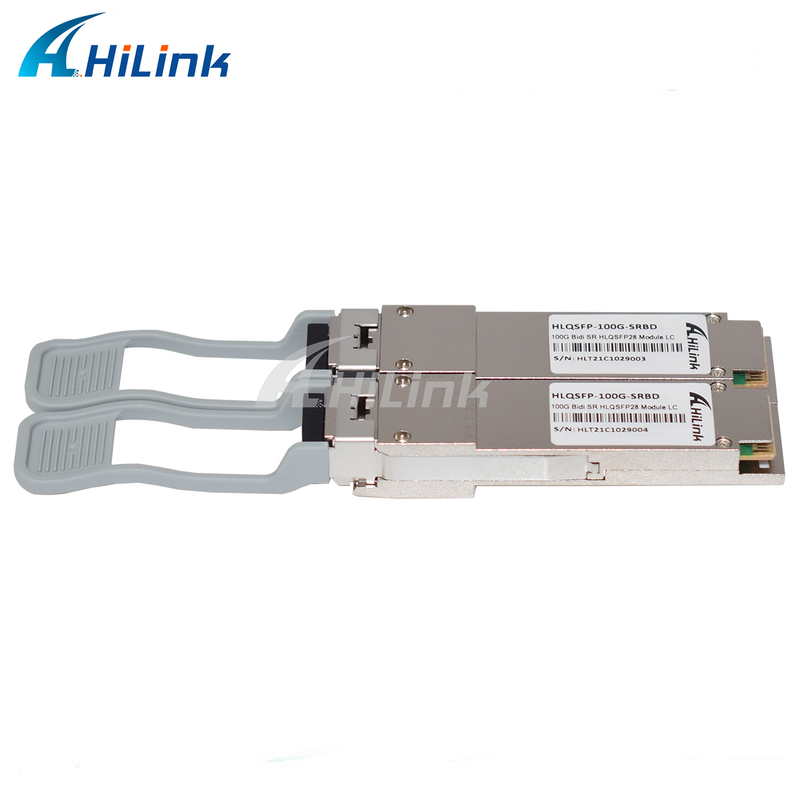

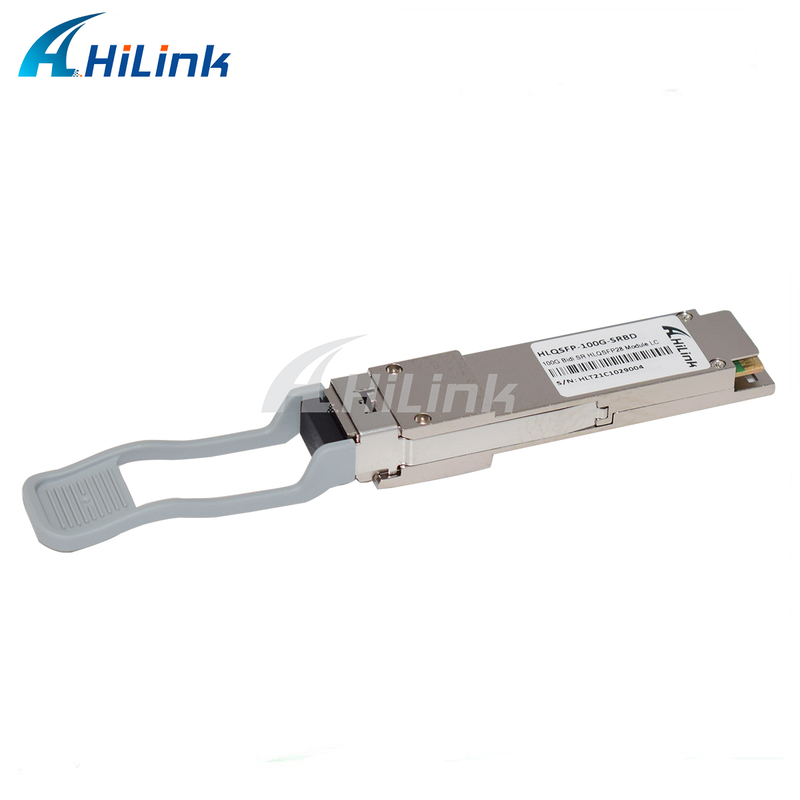

Name: 100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP28-100G-SRBD
Price: 425.00 USD
Availability: InStock

Para casa > produtos > Módulo óptico do transceptor >

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

QSFP28 SRBD optical transceiver

100G Bi-Di duplex LC module

PAM4 multimode transceiver 850/900nm

Lugar de origem:

Guangdong, China

Marca:

Hilink

Certificação:

CE RoHs

Número do modelo:

HL-QSFP28-100G-SRBD

Contacte-nos

Solicite um orçamento

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

Detalhes do produto

Nome do produto:

QSFP28 100G SRBD 100M

Taxa de dados:

100g

Distância:

100m

Conector:

+3,3VC

TEM:

0 a 70 ° C.

Garantia:

3 anos

Certificação:

CE RoHS

Prazo de entrega:

3-7 trabalhadores

OEM:

Apoiar

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Preço

EXW: 400USD/PCS~450USD/PCS

Detalhes da embalagem

Pacote normal ou OEM

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C, T/T, Western Union

PRODUTOS CONEXOS

25G SFP28 Modulo Ótico BIDI Conector de Fibra LC 0 a 70C 3km/10km/40km/60km

Obtenha o melhor preço

vídeo

Transceptor BIDI SFP28 25Gb/s 60km DDM

Obtenha o melhor preço

25G SFP28 BIDI 50km 1270/1310nm Module

Obtenha o melhor preço

100G QSFP28 SWDM4 Transceptor óptico 150m OM5 MMF LC RoHS

Obtenha o melhor preço

Contacte-nos

86-755-8317-6243

Contacte agora

Descrição do produto

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

Features

Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
Compliant to QSFP28 SFF-8636 Specification
Aggregate bandwidth of > 100Gbps
Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
QSFP28 MSA compliant
Capable of over 70m transmission on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Support 40G/100Gbps

Applications

100 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications

Description

It is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 100 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE XLPPI interface.

The transceiver internally multiplexes an XLPPI 4x25G interface into two 50Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 100Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 100GbE application. Link distances up to 70 m using OM3 and 100m using OM4 optical fiber are supported. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP28 type edge connector. The optical interface uses a conventional LC duplex connector.
