Name: 25G SFP28 BIDI 50km 1270/1310nm Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: 25G-BXU/D-50
Price: 130.00 USD
Availability: InStock

Para casa > produtos > Módulo óptico do transceptor >

25G SFP28 BIDI 50km 1270/1310nm Module

25G SFP28 BIDI optical transceiver

50km SFP28 fiber module

1270/1310nm BIDI transceiver module

Lugar de origem:

Guangdong, China

Marca:

Hilink

Certificação:

CE Rohs

Número do modelo:

25G-BXU/D-50

Contacte-nos

Solicite um orçamento

Detalhes do produto

Nome do produto:

25G-BXU/D-50

taxa de dados:

25g

Alcançar:

50 km

Temperatura operacional:

0 a 70 ℃

Termos de pagamento e envio

Quantidade de ordem mínima

1 peças

Preço

Send Inquiry know latest price

Detalhes da embalagem

Caixa de plástico+caixa

Tempo de entrega

5-8 Dia de trabalho

Termos de pagamento

T/T, Western Union, Alipay, PayPal/WeChat/Comércio Assurance

Habilidade da fonte

2000 peças/semana

PRODUTOS CONEXOS

Transceptor BIDI SFP28 25Gb/s 60km DDM

Obtenha o melhor preço

100G QSFP28 SWDM4 Transceptor óptico 150m OM5 MMF LC RoHS

Obtenha o melhor preço

Transceptor SFP BiDi SC Simples, SMF, 155Mb/s, 1550nm Tx, 1310nm Rx, DFB-LD, 40km

Obtenha o melhor preço

vídeo

Transceptor OSFP112 DR8+ 800G Interface Dual MPO-12 APC 1310nm 2km OSFP

Obtenha o melhor preço

Contacte-nos

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contacte agora

Descrição do produto

25G SFP28 BIDI 50km 1270/1310nm Module

Product Specifications

Attribute	Value
Product Name	25G-BXU/D-50
Data Rate	25G
Reach	50KM
Operating Temperature	0 to 70℃

Key Features

Supports data rates up to 25.78125Gb/s
Hot-pluggable SFP footprint with single LC connector
Up to 50km reach for G.652 SMF
EML transmitter and integrated APD receiver
Temperature range: Commercial (0°C to 70°C)
Power consumption: Commercial (1.5W)
RoHS 6 compliant
Compliant with IEEE 802.3cc, SFP-8472, SFP-8432 and SFP-8431
Meets EU Directive 2015/863/EU requirements

Applications

25G Ethernet networks

Product Description

This 25G series single mode transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 50km transmission distance with SMF. This module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1310nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The SFP28 50km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

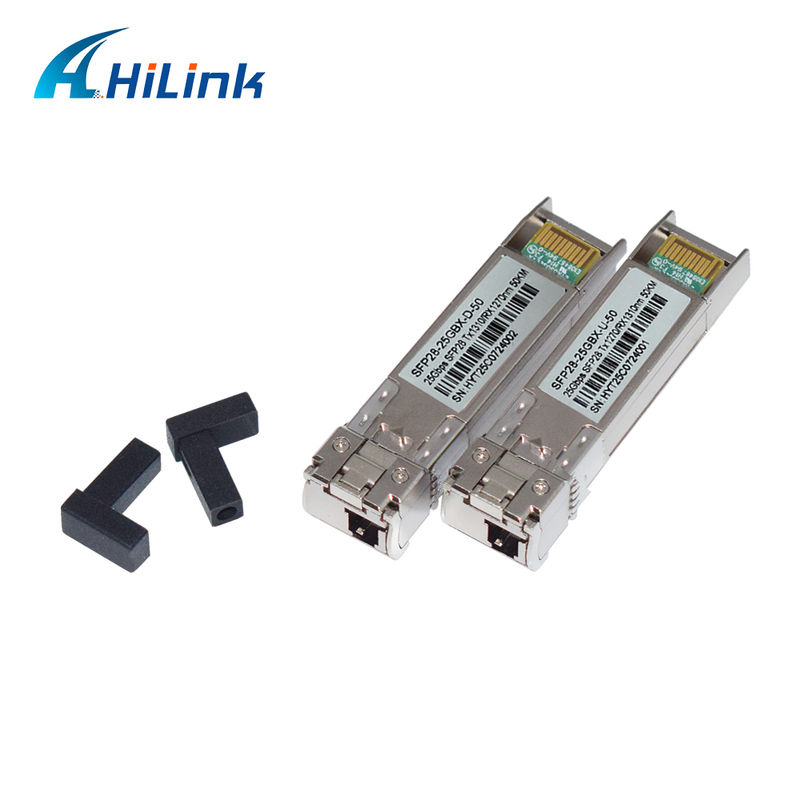

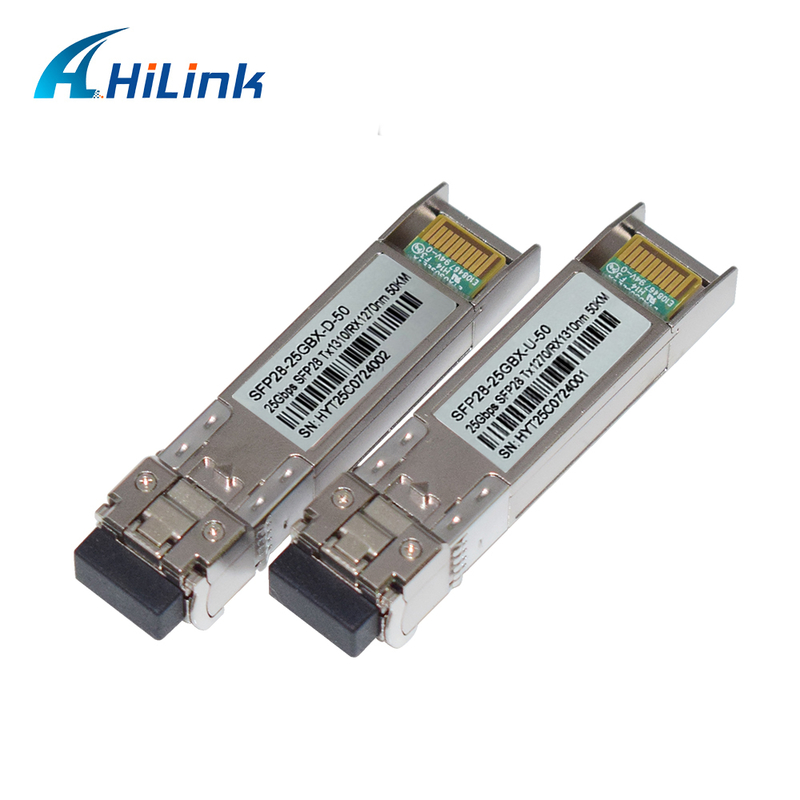

Product Images

Our Service

OEM/ODM orders available - All optical modules are brand new with no refurbished components. Each unit undergoes rigorous functional and aging tests.

3-year warranty - Coverage begins from shipment date for all optical transceivers.
