Name: 25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-BIDI-60KM
Price: 893.00 USD
Availability: InStock

Para casa > produtos > Módulo do transceptor de SFP+ >

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

25Gb/s SFP28 BIDI transceiver 60km

SFP28 BIDI transceiver LC DDM

SFP+ transceiver module 1295/1309nm

Lugar de origem:

Guangdong, China

Marca:

HILINK

Certificação:

CE FCC Rohs

Número do modelo:

HL-SFP28-BIDI-60KM

Contacte-nos

Solicite um orçamento

Detalhes do produto

Taxa de transferência de dados:

25g

Distância máxima:

600km

Comprimento de onda 1:

1295nm/1309nm

Conector:

LC Siimplex

Garantia:

3 anos

CE FCC ROHS:

Apoiar

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Preço

Negociável

Detalhes da embalagem

Caixa da caixa, caixa varejo, ou pelo exigido

Tempo de entrega

1-4 dias

Termos de pagamento

L/C, T/T, Western Union, PayPal

Habilidade da fonte

3000 pares pela semana

PRODUTOS CONEXOS

vídeo

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Obtenha o melhor preço

vídeo

Módulo Transceptor 10G-ZR4-80KM 10G BIDI 80KM 1490nm/1550nm SFP+ STM-64 WDM 8SFP+ SMF

Obtenha o melhor preço

HL-SFP-BX-10KM 10G SFP+ Módulo Transceptor BIDI 20KM 1270NM 1330NM LC CONECTOR ROHS

Obtenha o melhor preço

BIDI 10G WDM SMF Transceptor Óptico SFP+ 100KM Tx1490nm/Rx1550nm com transceptores de fibra óptica LC para redes FTTH

Obtenha o melhor preço

Contacte-nos

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Contacte agora

Descrição do produto

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Product Specifications

Attribute	Value
Data transfer rate	25G
Max Distance	600km
Wavelength 1	1295nm/1309nm
Connector	LC Simplex
Warranty	3 Years
CE FCC Rohs	Support

Product Description

The SFP28-25G-UD-60 series single mode transceiver is small form factor pluggable module for duplex optical data communications. The SFP28-25G-UD-60 module is designed for single mode fiber and operates at a nominal wavelength of 1295.56nm or 1309.14nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The SFP28 60km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

Features

Support data rate up to 25.78125Gb/s
Hot-Pluggable SFP Footprint and Single LC Connector
Up to 60km reach for G.652 SMF
EML TX and Integrated APD RX
Temperature Range:
- Commercial: 0°C ~70°C
- Industrial: -40°C ~85°C
Power consumption
- Commercial: 1.5W
- Industrial: 1.8W
RoHS 6 compliance
Compliant to IEEE 802.3cc, SFF-8472 and SFF-8419
Complies with EU Directive 2015/863/EU

Applications

25GE BASE-LR Ethernet

CPRI Option 10/eCPRI

25G SFP Transceivers

25G SFP	Description
SFP28-25G-SR	SFP28 25Gbps 850nm 100M LC DOM
SFP28-25G-LR	SFP28 25Gbps 1310nm 10KM LC DOM
SFP28-25G-ER	SFP28 25Gbps 1310nm 40KM LC DOM
SFP28-25G-BIDI-10KM	SFP28 25Gbps BIDI1270/1310nm 10KM LC DOM
SFP28-25G-BIDI-40KM	SFP28 25Gbps BIDI1270/1310nm 40KM LC DOM
SFP28-25G-BIDI-50KM	SFP28 25Gbps BIDI1270/1310nm 50KM LC DOM

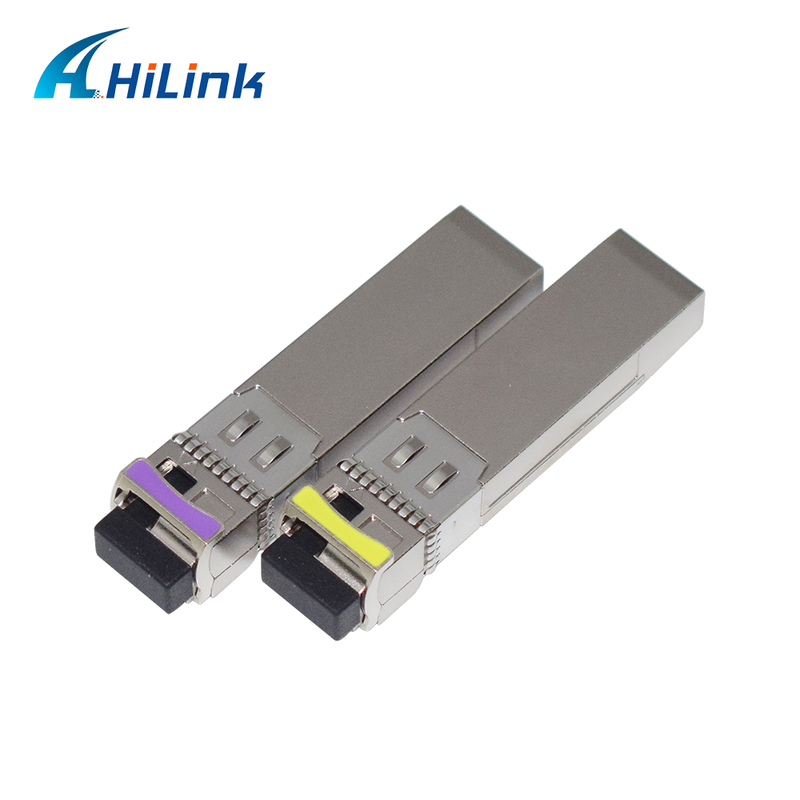

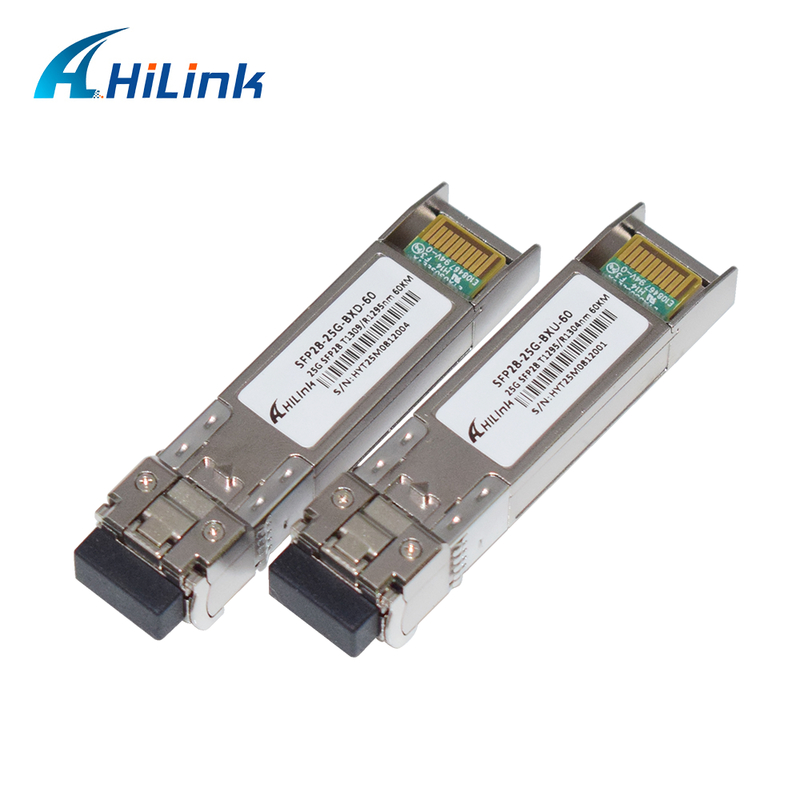

Product Images

Mechanical Dimensions

SHENZHEN HILINK CO., LTD

As we have various kinds of products, if you can't find the correct item you need, please send us inquiry. We will reply shortly.

www.hilinktech.com
